HP Integrity BL860c - Page 11

4. Remove the UPS battery modules.
IMPORTANT: Do not pull the battery leads when removing or installing the batteries.
HP UPS R5500

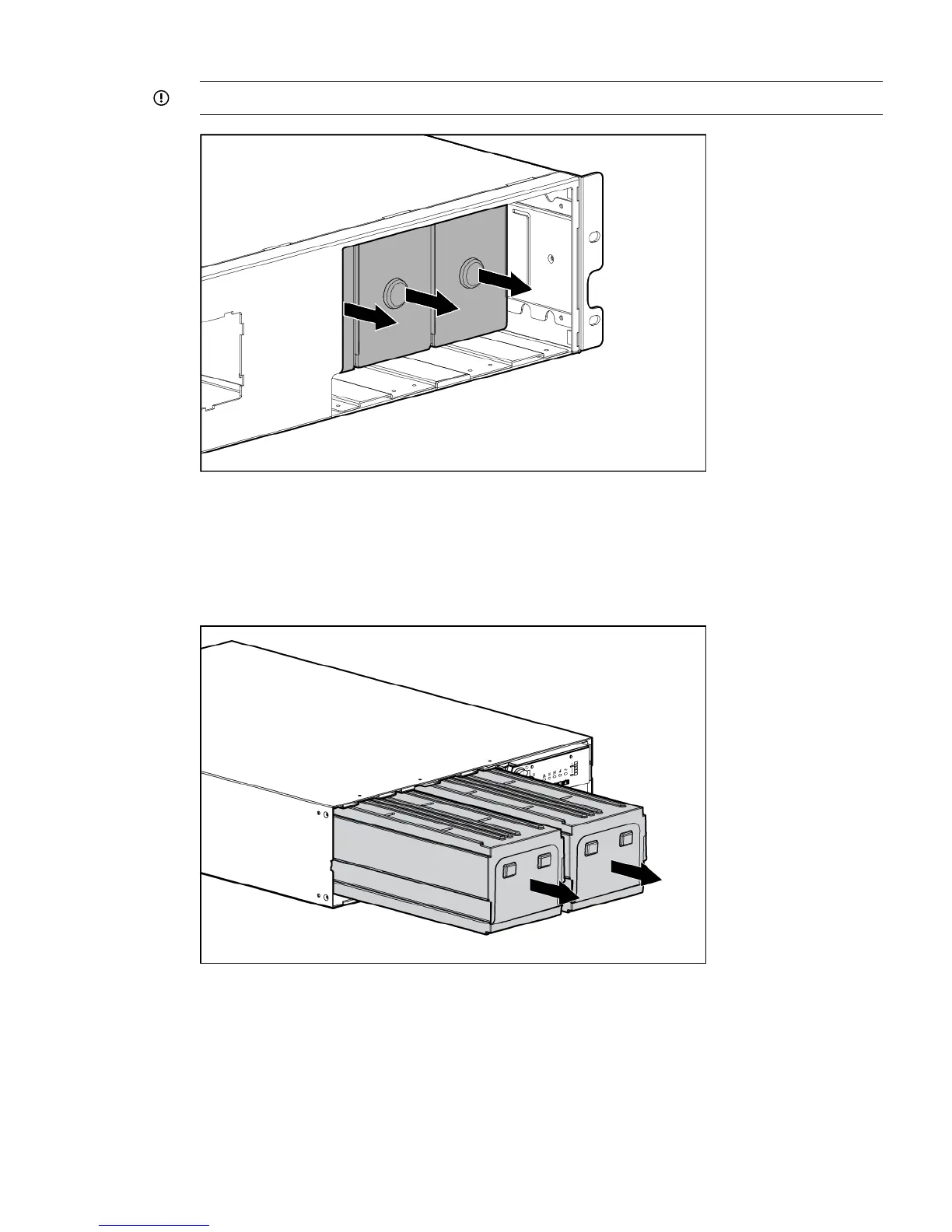

1. Remove the UPS front bezel.
2. Remove the UPS battery bracket.
3. Remove the UPS battery modules.
HP UPS R7000
1. Remove the UPS front bezel.
2. Disconnect the battery leads.
Overview 11
