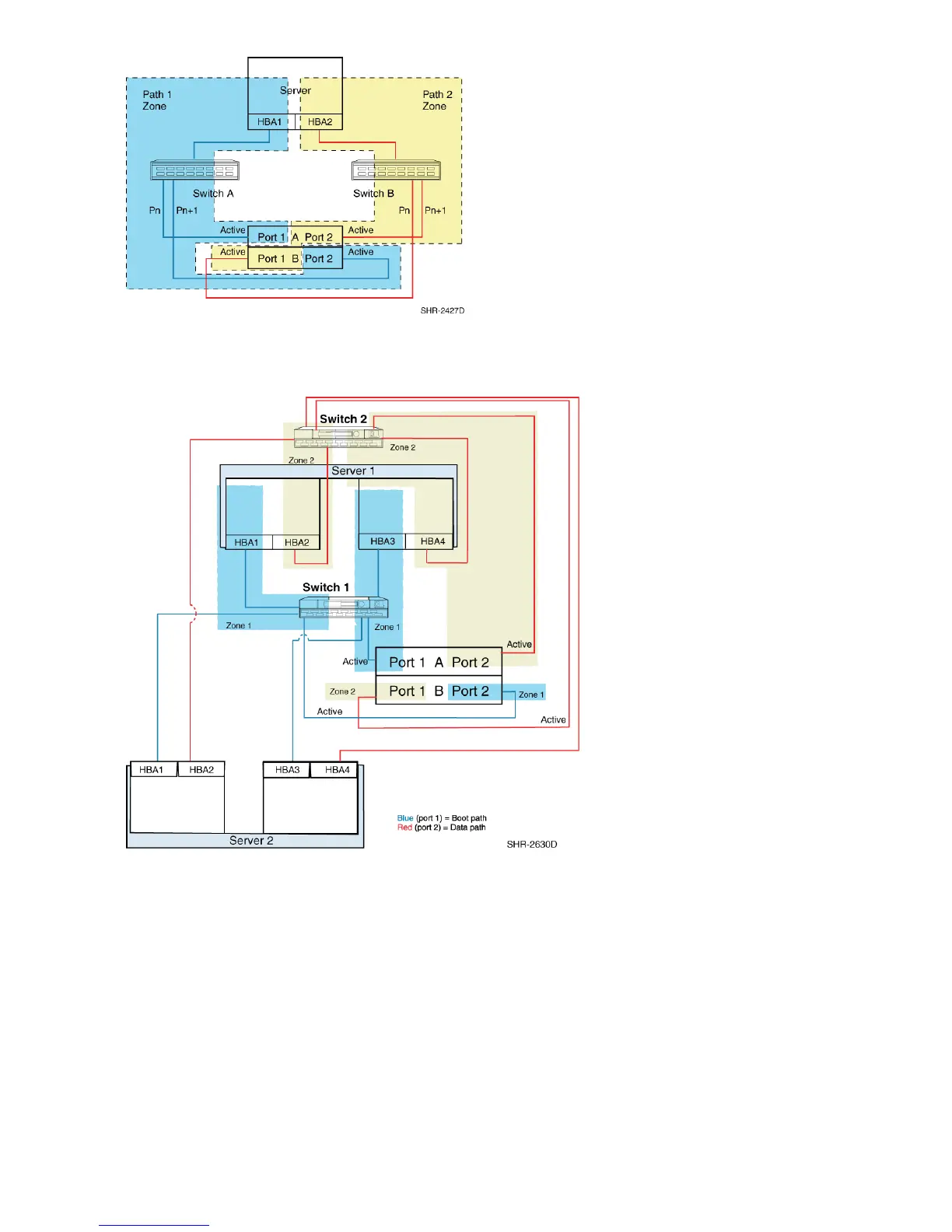

Figure 5 Single server, two single-channel HBAs, two switches, straight-cable HA storage configuration
.
The configuration shown in Figure 6 supports SCSIPORT or Storport miniport drivers.
Figure 6 Clustered servers, four single-channel HBAs per server, two switches, cross-cable HA storage
configuration
.
Cabling options for dual-channel HBAs
Dual-channel HBAs are typically used when the number of server PCI slots is limited. Figure 7 through
Figure 12 show the cabling options for dual-channel HBAs.
Boot from SAN18
