Installing a Hard Drive
SATA Hard Drive Installation Guide 2–5

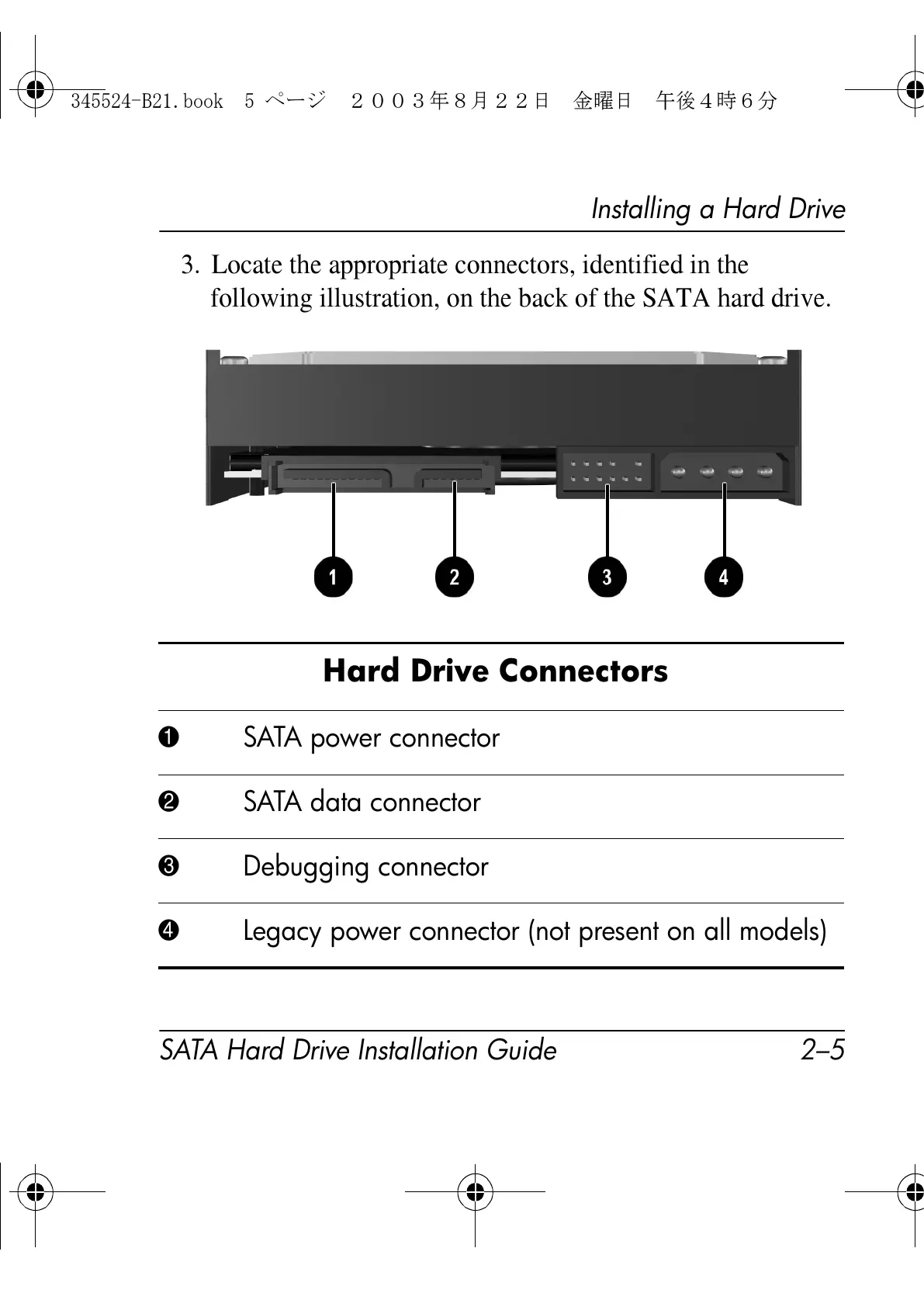

3. Locate the appropriate connectors, identified in the
following illustration, on the back of the SATA hard drive.
Hard Drive Connectors
1 SATA power connector
2 SATA data connector
3 Debugging connector
4 Legacy power connector (not present on all models)
