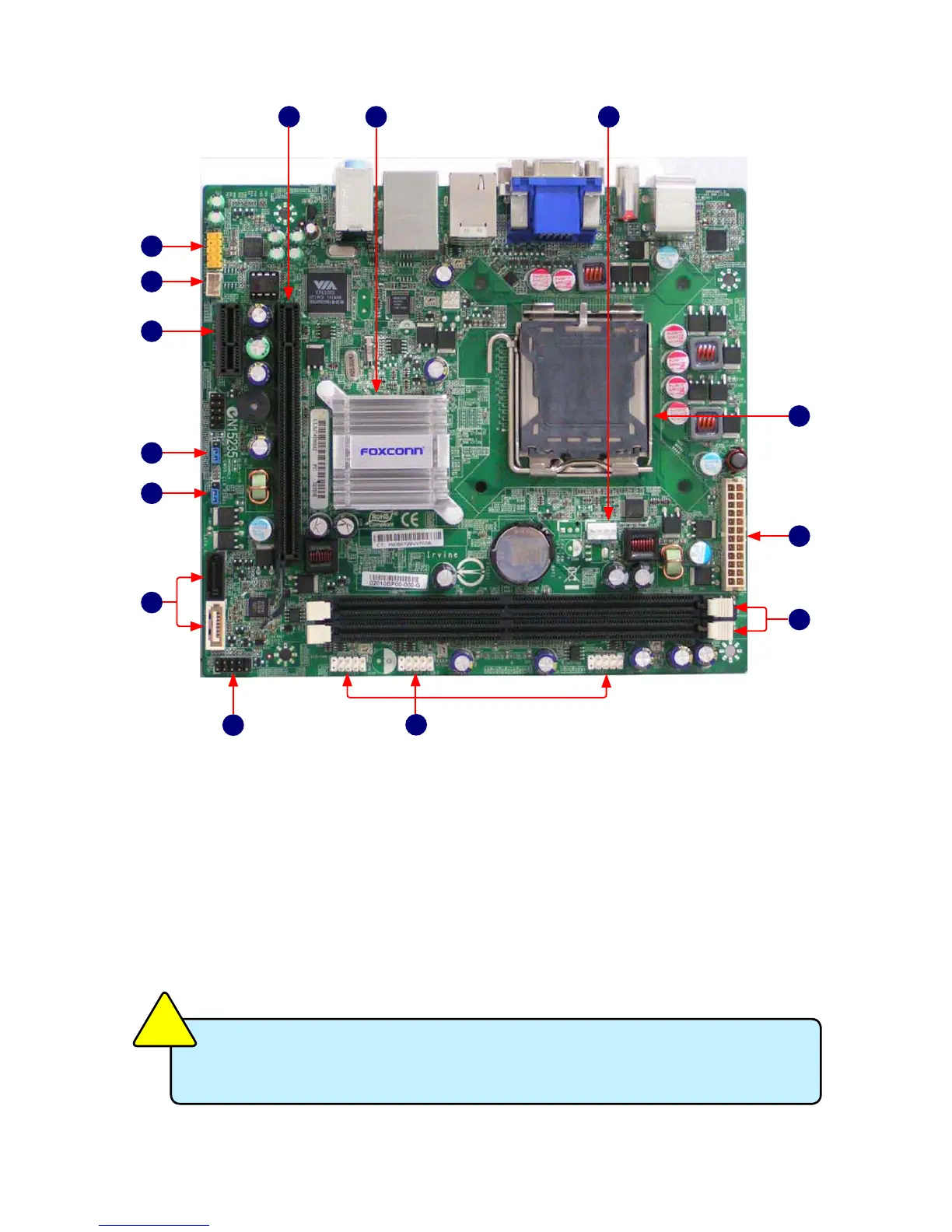

HP Irvine - Motherboard Layout

4
12
14
7
8
9
10
11
13
6
1
1. Front Audio Connector
2. SPDIF_OUT2 header
3. PCI Express x1 Slot
4. Clear CMOS Jumper
5. CLR_PSWD1 Jumper
6. SATA II Connectors
7. Front Panel Connector
8. Front USB Connectors
1-2 Layout
2
3
4
5
8. Front USB Connectors
9. DDR2 DIMM Slots
10. 24-pin ATX Power Connector : PWR1
11. LGA 775 CPU Socket
12. CPU_Fan Connector
13. Chipset: NVIDIA GeForce 7100 /
nForce 630i
14. PCI Express x16 Slot
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
C
A
U
T
I
O
N
!
