2-2 Install the Memory

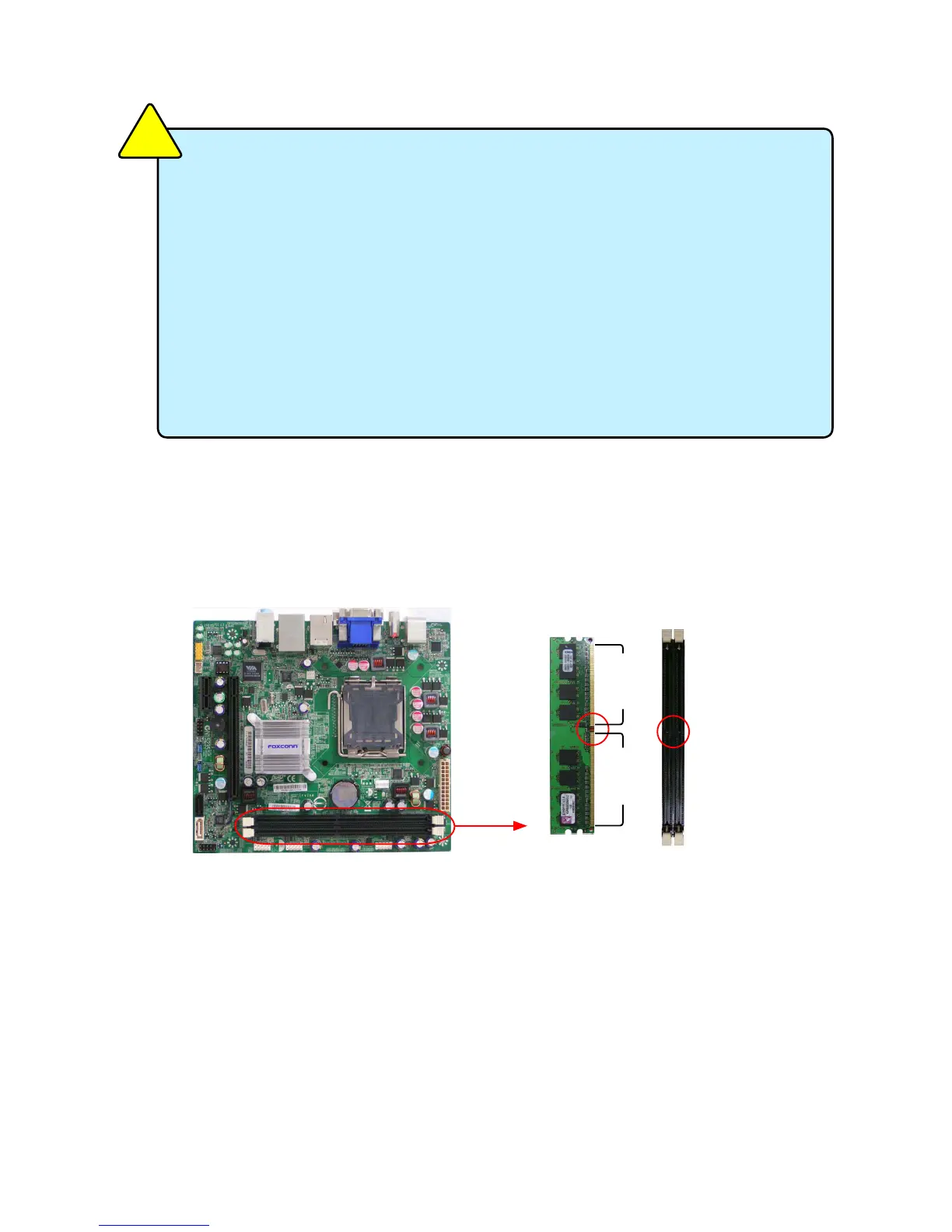

If you take a look at front side of memory module, it has asymmetric pin
counts on both sides separated by a notch in the middle, so it can only t in
one direction. Follow the steps below to correctly install your memory modules
into the sockets.
Notch
Read the following guidelines before you begin to install the Memory:
■ Make sure that the motherboard supports the memory. It is
recommended that memory of the same capacity, brand, speed, and
chips be used.
■ Always turn off the computer and unplug the power cord from the
power outlet before installing the memory to prevent hardware damage.
■ Memory modules have a foolproof design. A memory module can be
installed in only one direction. If you are unable to insert the memory,
switch the direction.
■ DDR2 DIMMs are not compatible to DDR DIMMs. Be sure to install
DDR2 DIMMs on this motherboard.
C
A
U
T
I
O
N
!
Memory Conguration
This motherboard provides two DDR2 memory sockets. After the memory is
installed, the BIOS will automatically detect the specications and capacity of
the memory.
112-Pin128-Pin
