Installing the Series 2300 and 2500 Switches
Installation Procedures
Installing the Series 2300
and 2500 Switches
3. Place the switch in the rack and lower it so the notches in the bottom of
the bracket slide onto the screws, then tighten these screws.
.
4. Install the other number 12-24 screw through the hole in each bracket.
Tighten these screws.

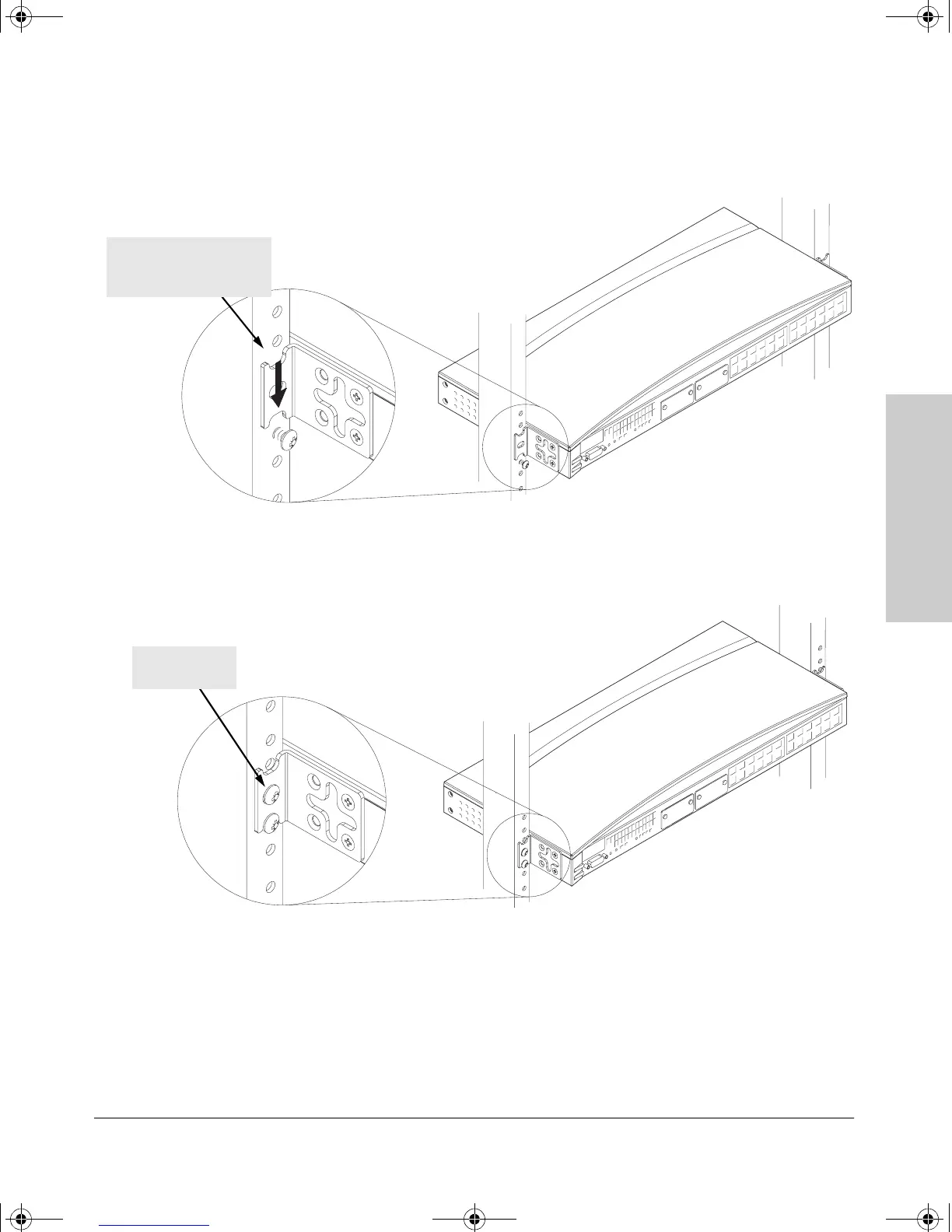

lower switch with mounting
brackets onto the partially
installed screw
install additional
screw
