29

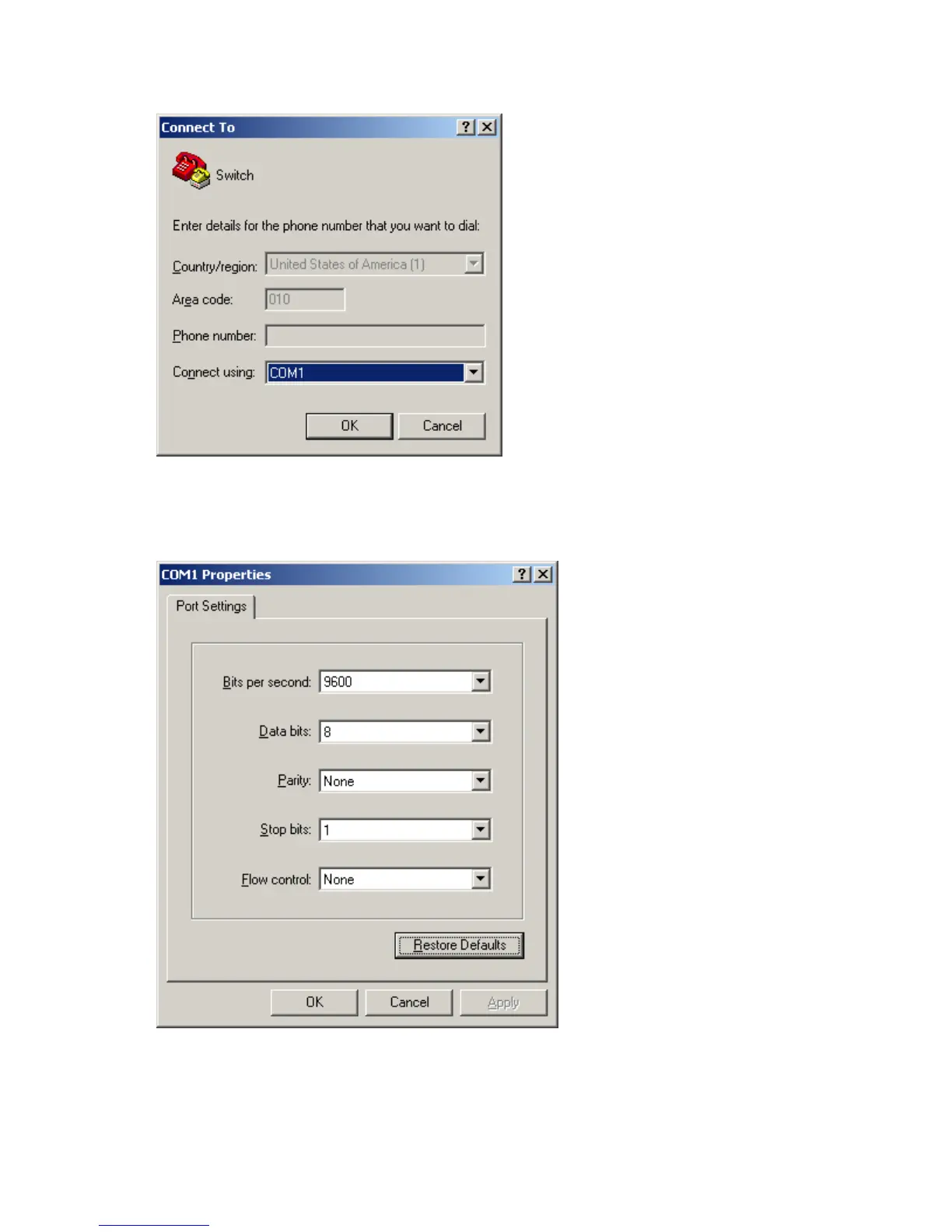

Figure 38 Set the serial port used by the HyperTerminal connection
4. Set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None,
and click OK.
Figure 39 Set the serial port parameters
5. Select File > Properties in the HyperTerminal window.
