HP JG221A

3
A3100-8 v2 SI/A3100-8 v2 EI
Front panel

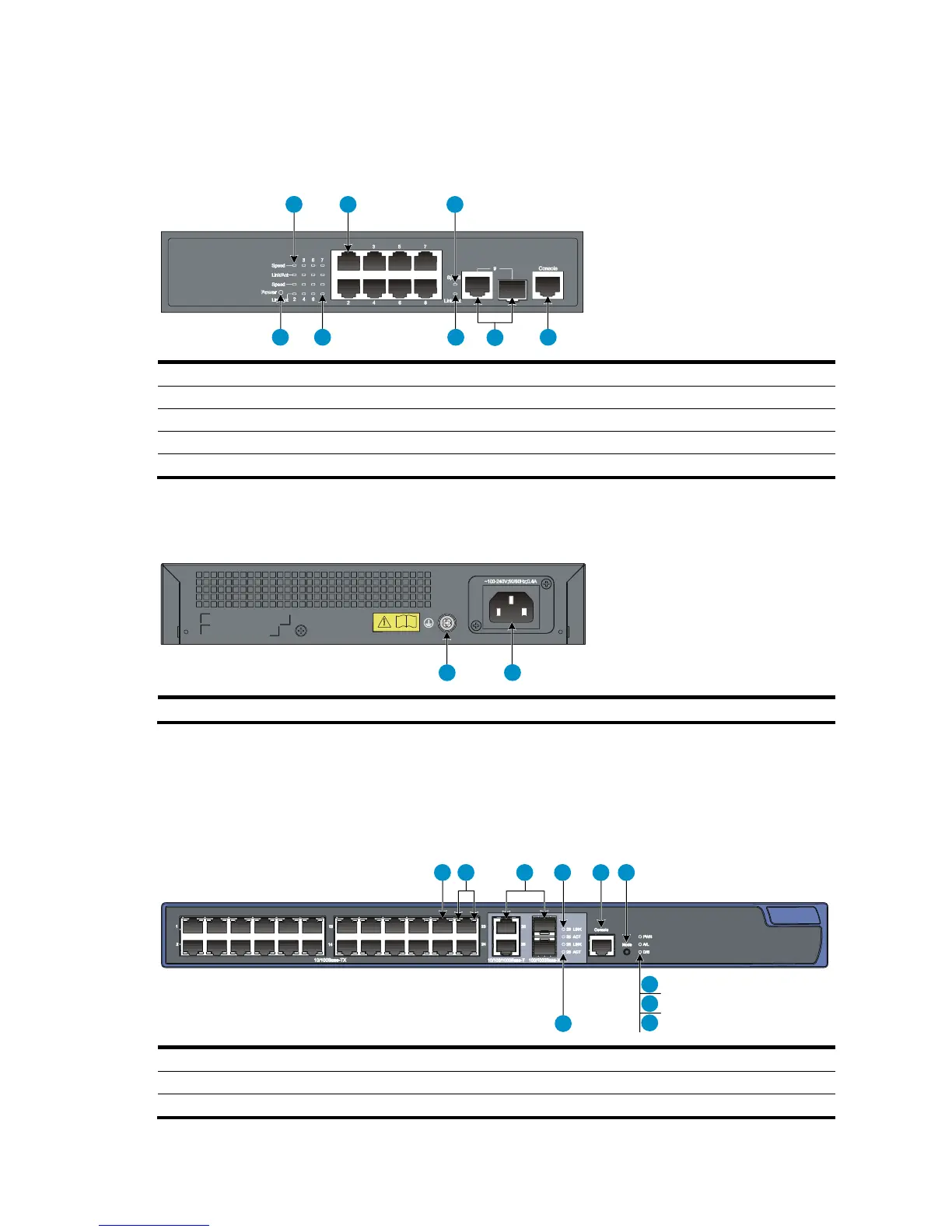

Figure 5 A3100-8 v2 SI/A3100-8 v2 EI front panel
1 2 3
4
5
678
(1) Speed LED for a 10/100Base-TX Ethernet port
(2) 10/100Base-TX Ethernet ports
(3) Speed LED for a combo interface
(4) Console port
(5) Combo interface (10/100/1000Base-T Ethernet port on the left, 100/1000Base-X SFP port on the right)
(6) Link/Act LED for a combo interface
(7) Link/Act LED for a 10/100Base-TX Ethernet port
(8) Power LED
Rear panel
Figure 6 A3100-8 v2 SI/A3100-8 v2 EI rear panel
1
2
(1) Grounding screw
(2) AC-input power receptacle
A3100-24-PoE v2 EI
Front panel
Figure 7 A3100-24-PoE v2 EI front panel
1
2 3 4
5
6
7
8
9
10
(1) 10/100Base-TX Ethernet port
(2) 10/100Base-TX Ethernet port LEDs (left: yellow, right: green)
(3) Combo interface (10/100/1000Base-T Ethernet port on the left, 100/1000Base-X SFP port on the right)
