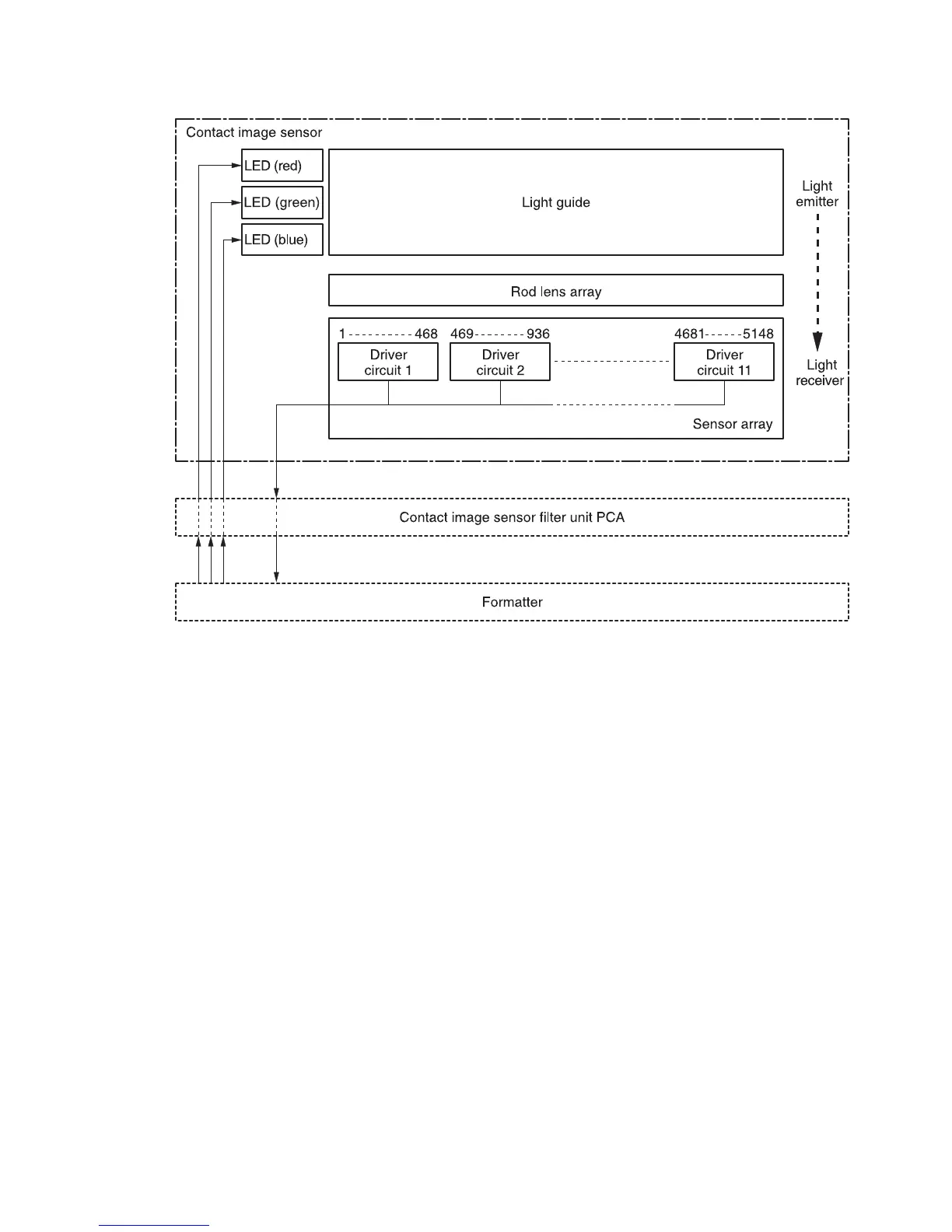

Figure 4-3 Optical system (2 of 2)
Scanner operation
At startup and periodically at other times, the scanner assembly moves systematically to locate its home
position. It then calibrates to a white strip located under the glass at the right end of the scan tub.
ENWW Scanner functions and operation 37
