HP LaserJet M1120 - Multifunction Printer - Internal Components (Base Unit)

Internal components (base unit)

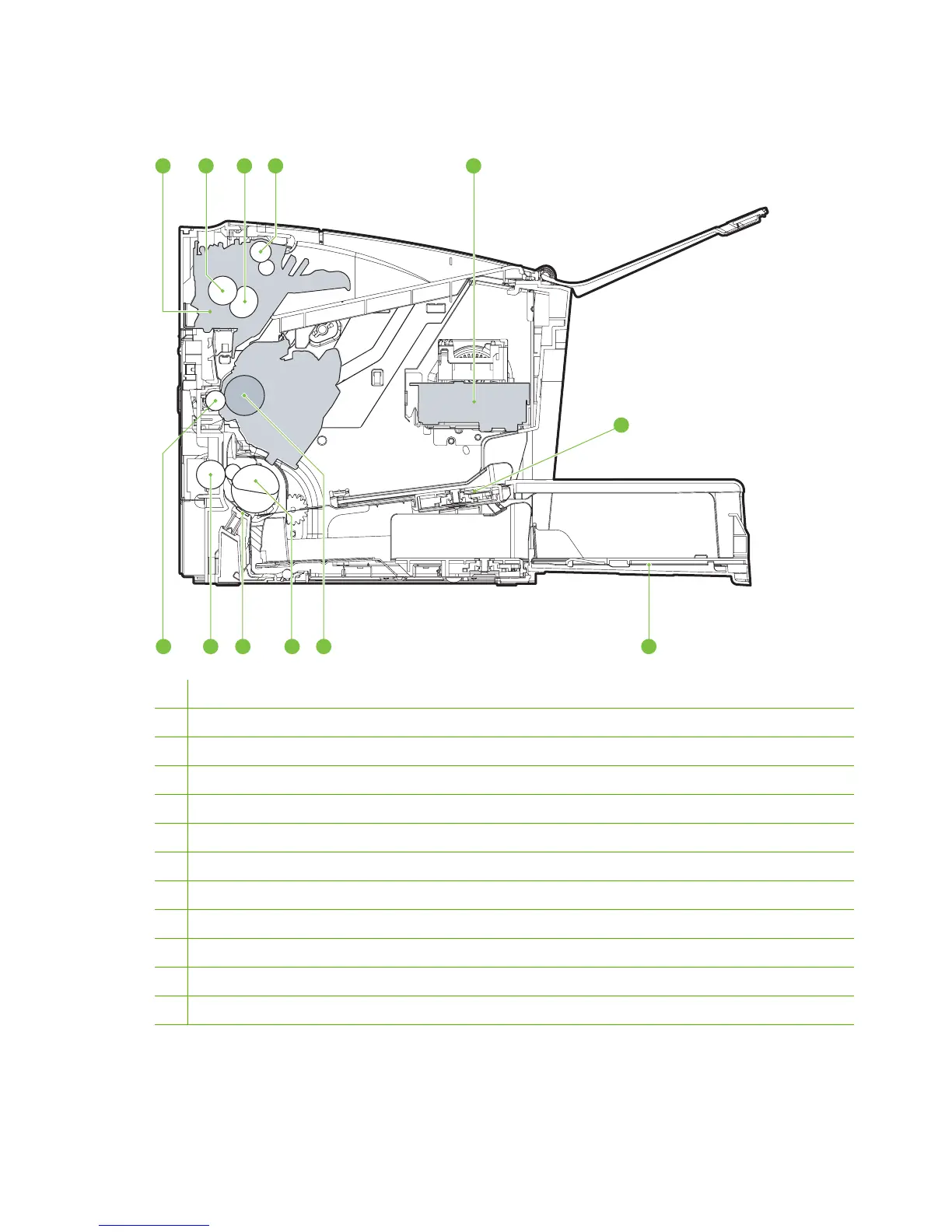

Figure 4-4 Cross-section of printer
1 2 3 4
5
6
789101112
1 Fuser unit
2 Pressure roller
3 Fuser sleeve
4 Delivery roller
5 Laser/scanner unit
6 Single-sheet-feed slot
7 Multi-purpose tray
8 Photosensitive drum
9 Pickup roller
10 Separation pad
11 Feed roller
12 Transfer roller
