Print-cartridge door
1. Remove the scanner assembly. See Scanner assembly on page 60.
2. Fully open the print-cartridge door and gently pull downward on both print-cartridge swing arms to
release them. (In
Figure 5-41 Remove the print-cartridge door (1 of 2) on page 76, the left arm
is disengaged).
CAUTION: Be careful when releasing the swing arms. They can easily break.

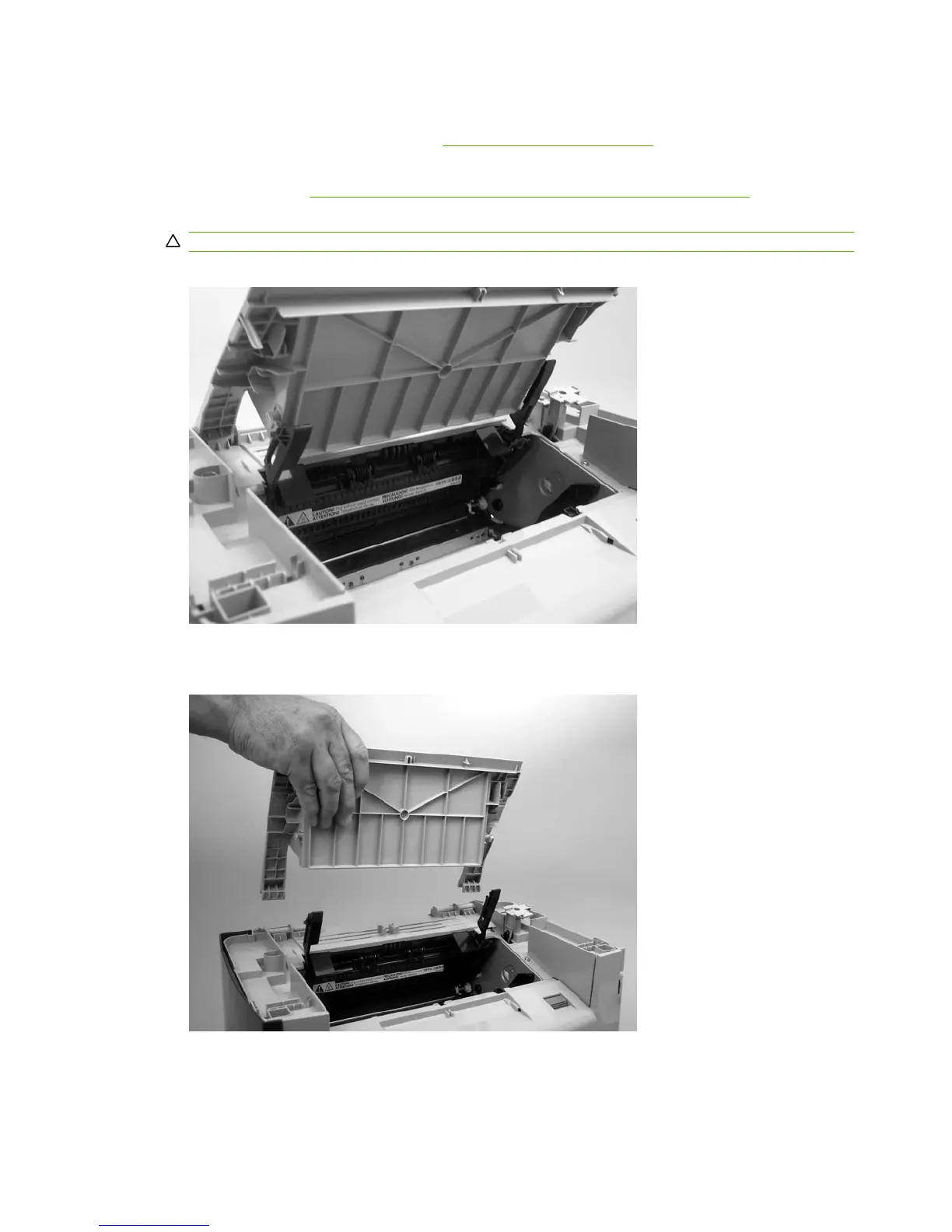

Figure 5-41 Remove the print-cartridge door (1 of 2)
3. Rotate the door toward the back of the product and then lift it up and off of the product.
Figure 5-42 Remove the print-cartridge door (2 of 2)
76 Chapter 5 Removal and replacement ENWW
