Pickup roller
1. Remove the print cartridge and locate the product pickup roller. See Print cartridge on page 101.

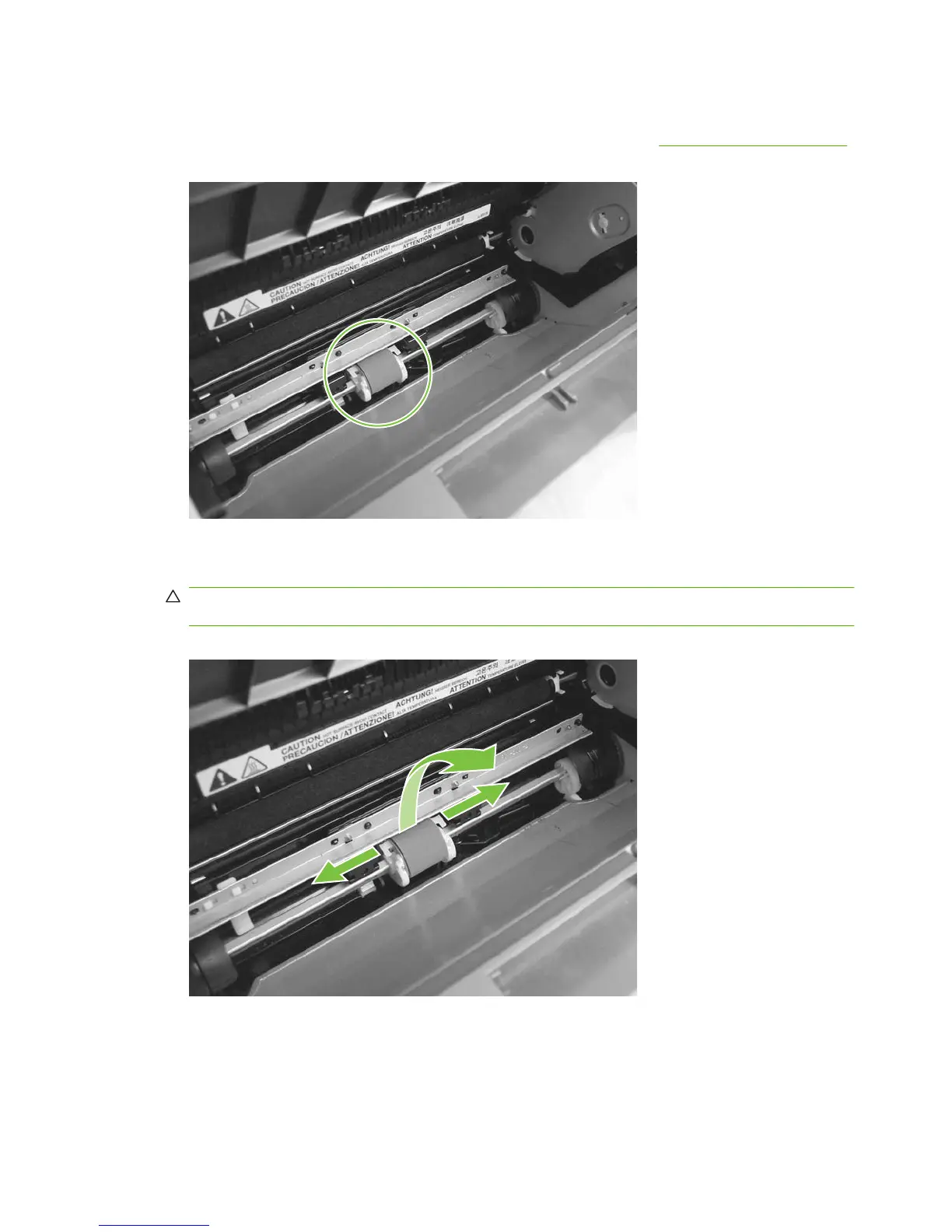

Figure 6-49 Removing the pickup roller (1 of 5)
2. Gently release the small, white tabs on each side of the pickup roller by pushing them away from
the roller, and then rotate the roller away from the mounting frame.
CAUTION: Do not touch the black-sponge portion of the transfer roller inside the product.
Touching the transfer roller can damage the product.
Figure 6-50 Removing the pickup roller (2 of 5)
102 Chapter 6 Removal and replacement ENWW
