necessary for correct document scanning. The one-way clutch varies the rotation speeds of the pickup
roller and feed roller to prevent the rollers from tearing the document.

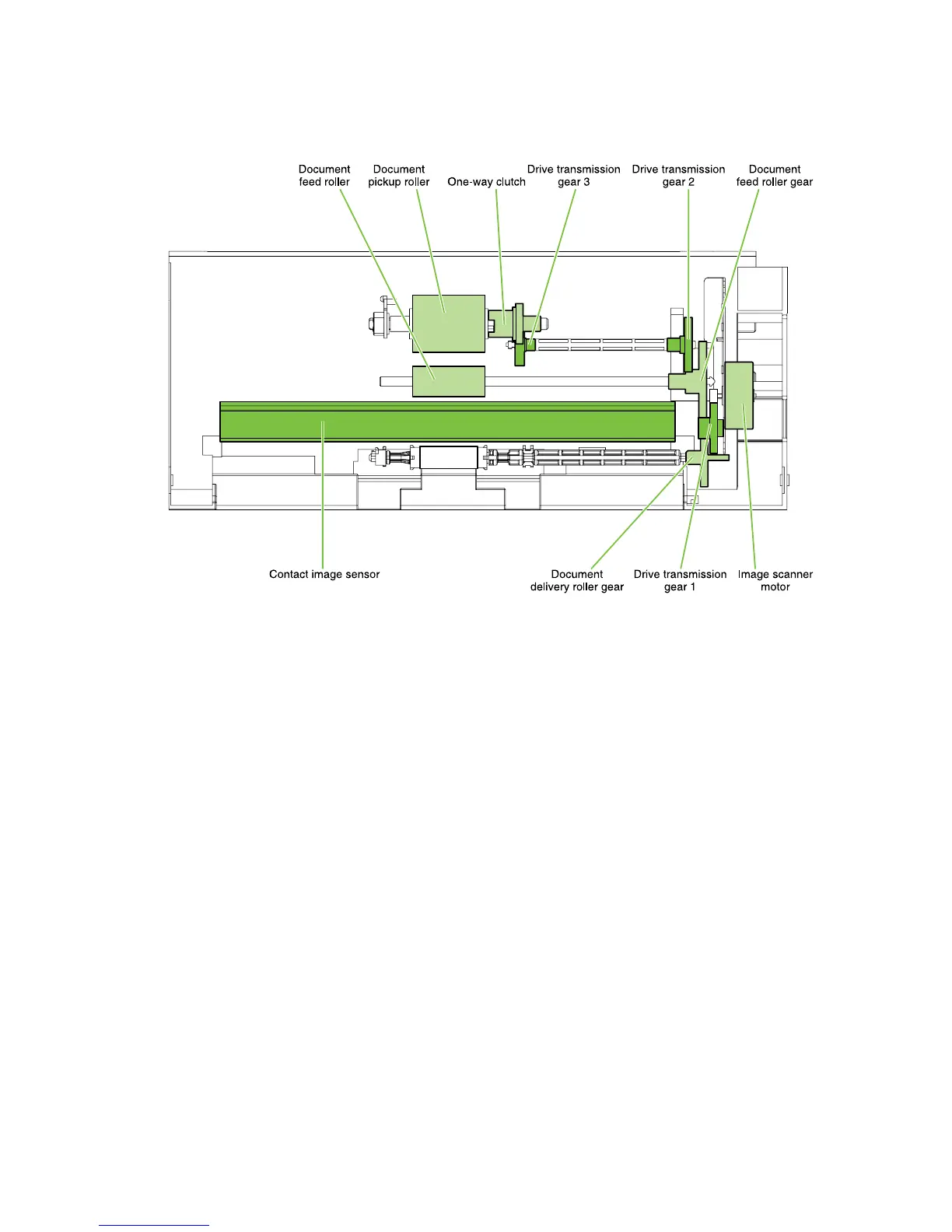

Figure 5-10 Feed control (2 of 2)
ENWW HP LaserJet M1319f components 55
