Hard drive
NOTE: The product has a hard disk drive (HDD) installed. If you install a replacement disk drive, you
must reload the product firmware. See
Reload the firmware on page 22.
Before proceeding, remove the following components:
●
Formatter PCA. See
Formatter PCA on page 17.
●
Fax PCA and cable. See
Fax PCA and cable on page 18.
Remove the HDD
CAUTION: ESD sensitive component.
1. Place the formatter on a clean, flat, grounded surface.
2. Release the locking lever to release the HDD.

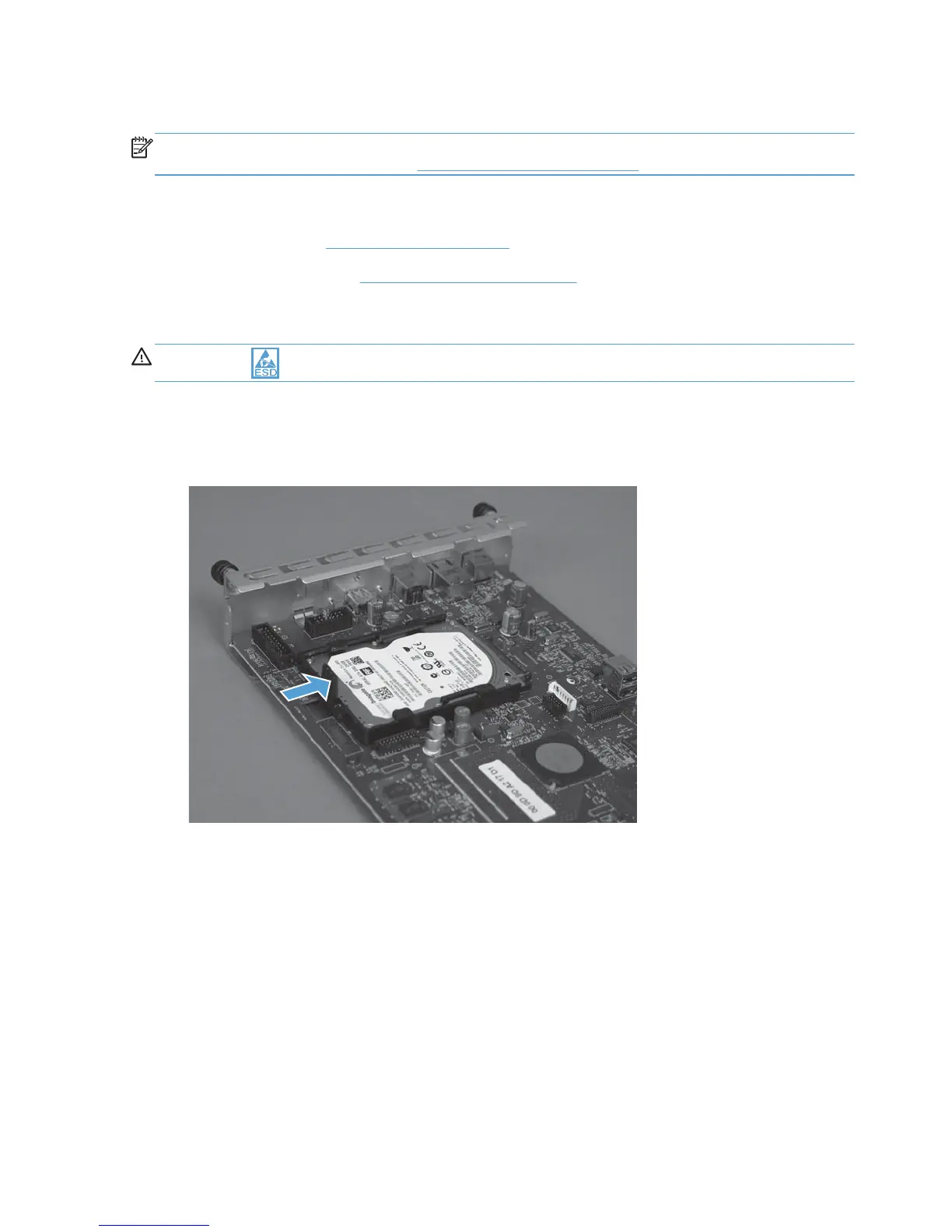

Figure 1-18 Remove the HDD (1 of 3)
