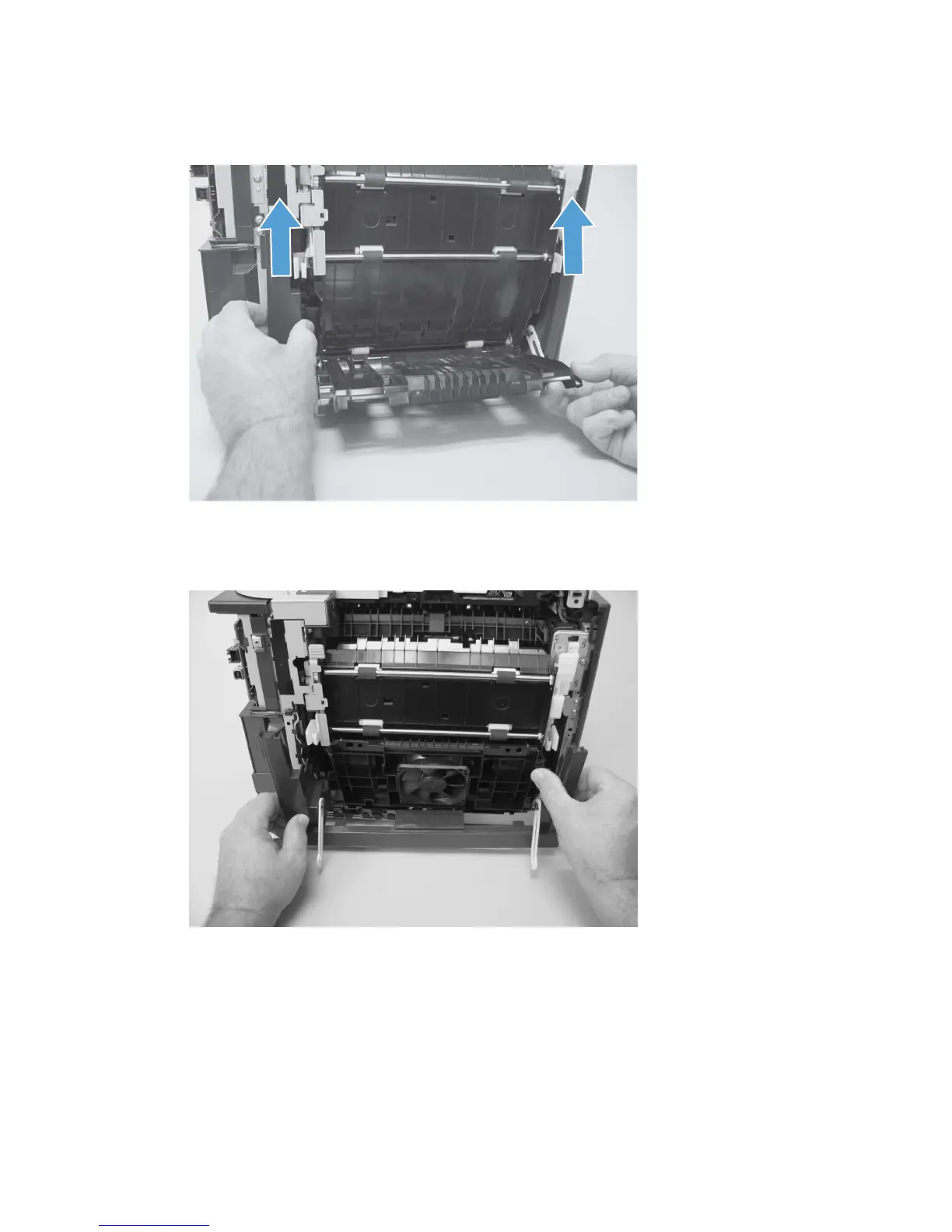

4. Close the duplex assembly, and then lift up on one side of the cover, and then the other side of the
cover to release it.
Figure 1-38 Remove the rear-lower cover and link-guides (4 of 6)
5. Slightly lift up the rear-door rib assembly, and then carefully slide the cover away from the product to
remove it.
Figure 1-39 Remove the rear-lower cover and link-guides (5 of 6)
34 Chapter 1 Removal and replacement ENWW
