6. Rotate the rear-door link until the slot in the link aligns with the tap on the link-hinge pin, and then
remove the rear-door link. Repeat this step for the remaining rear-door link.
NOTE: If you are installing a replacement rear-lower cover, remove the rear-door links from the
discarded cover, and then install them on the replacement cover.

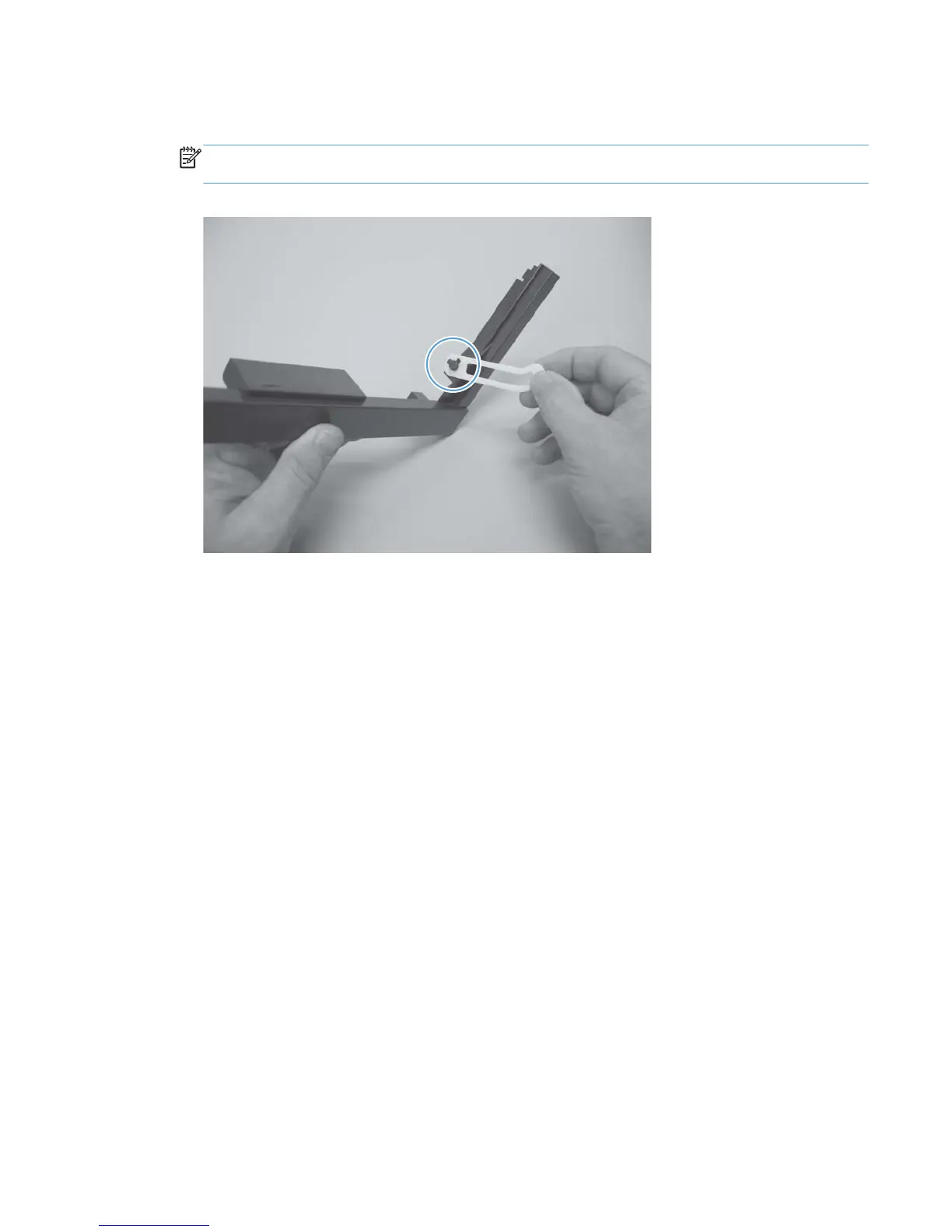

Figure 1-40 Remove the rear-lower cover and rear-door links (6 of 6)
ENWW Removal and replacement procedures 35
