Rear-door rib assembly
Before proceeding, remove the following components:
Right cover. See Right cover on page 25.
Rear door. See Rear door on page 30.
Rear upper cover. See Rear-upper cover on page 28.
Rear-lower cover. See Rear-lower cover and rear-door links on page 32.
Remove the rear-door rib assembly
NOTE: The duplex fan (FM2) is a component of the rear-door rib assembly.
1. Slide the rear rib assembly to the left, lift the door gently, and then rotate it away from the product
slightly.

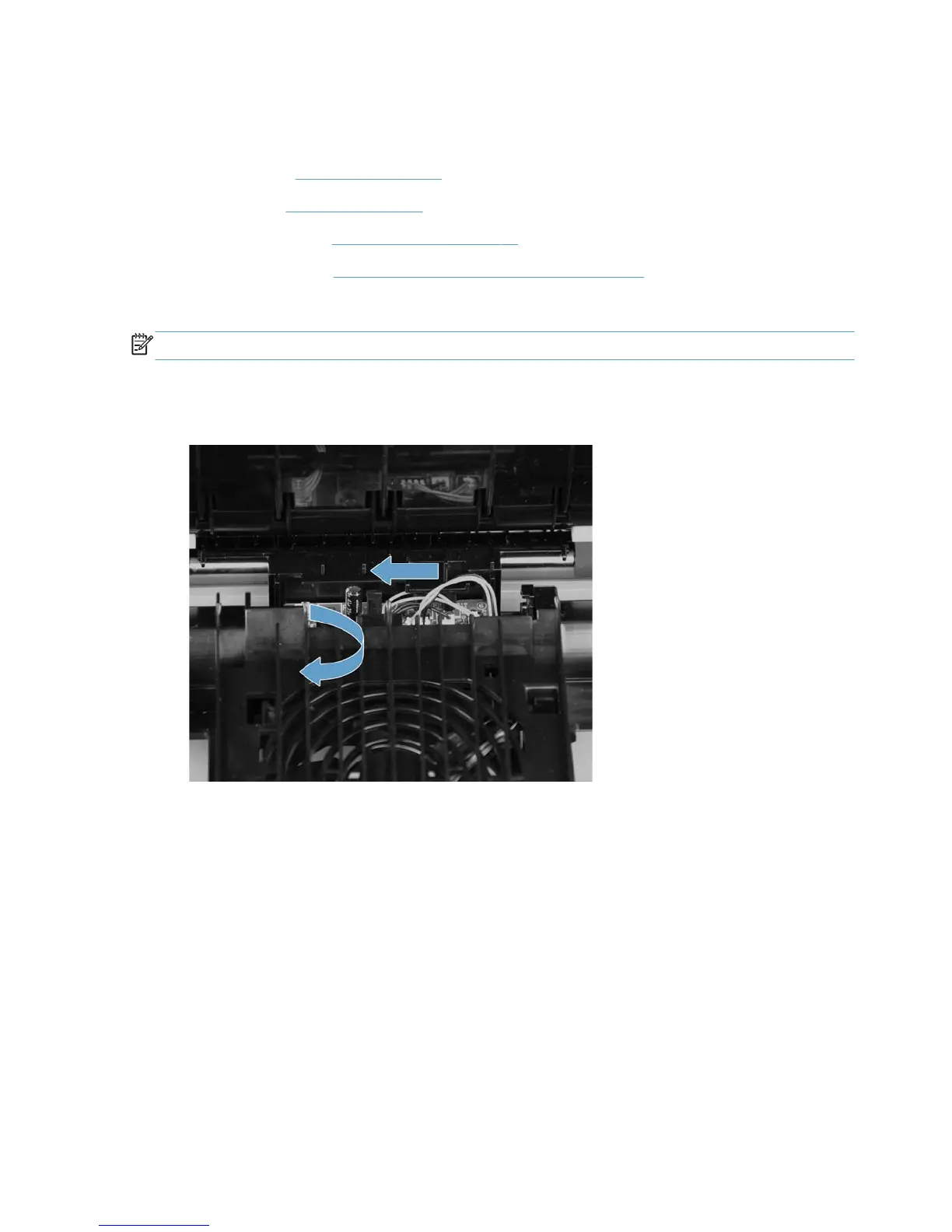

Figure 1-41 Remove the rear-door rib assembly (1 of 3)
36 Chapter 1 Removal and replacement ENWW
