2. Remove three screws (callout 1) and release the wire harness from the retainer. Remove the fan
assembly.
NOTE: The fan assembly is still attached to the product. Move the fan assembly off to one side.

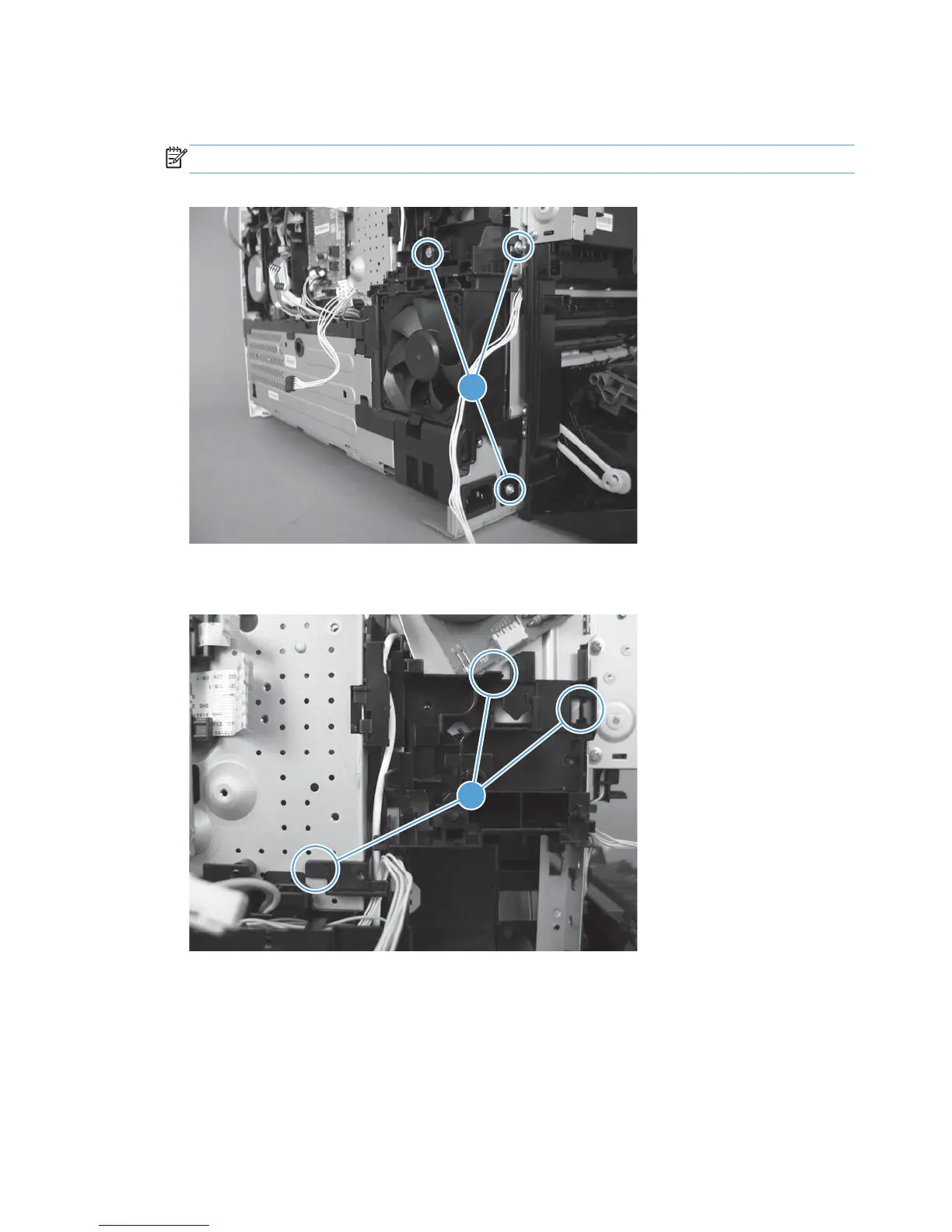

Figure 1-94 Remove the fuser-motor assembly (2 of 6)
1
3. Release three tabs (callout 1), and then remove the retainer.
Figure 1-95 Remove the fuser-motor assembly (3 of 6)
1
