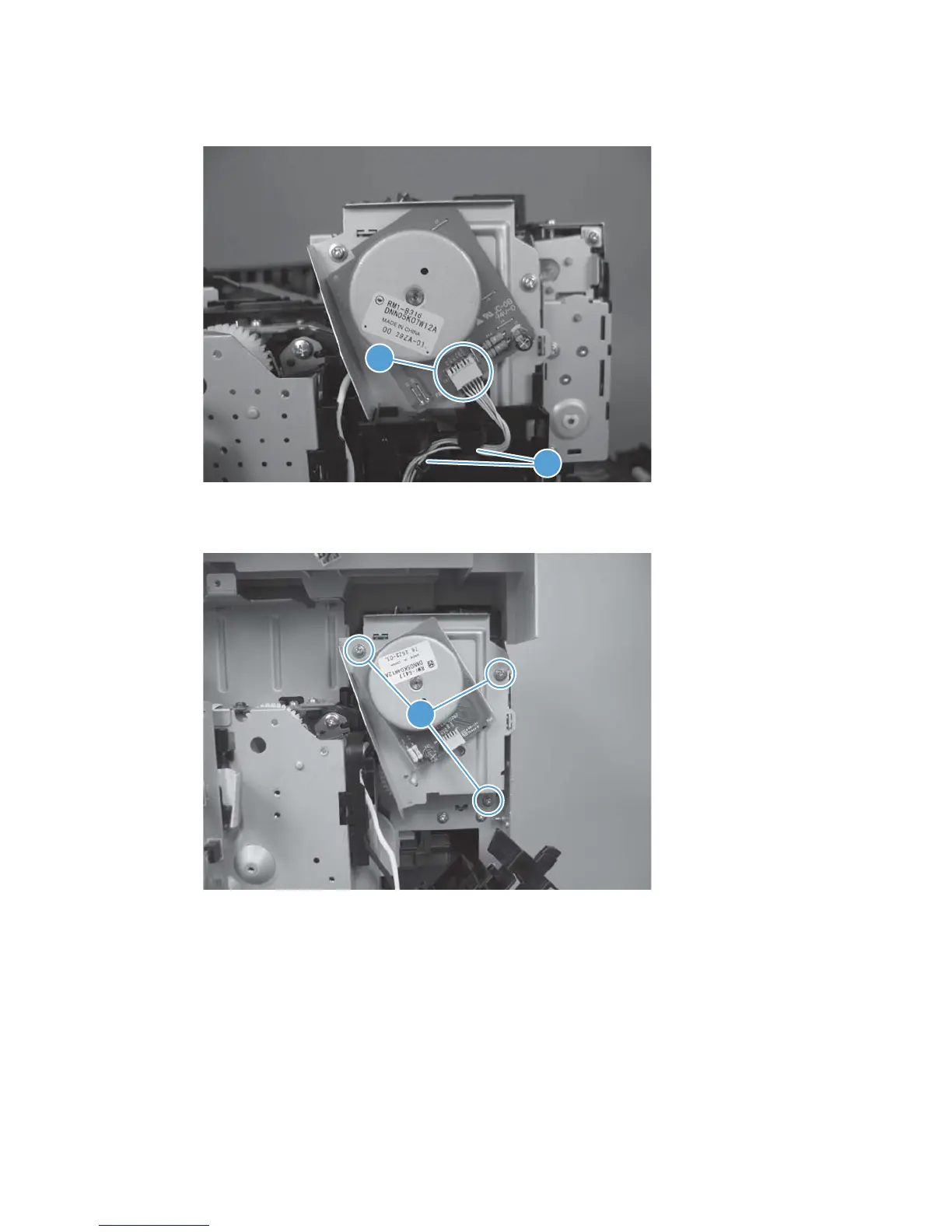

4. Disconnect one connector (callout 1) and remove the wire harness from the retainer (callout 2).
Figure 1-96 Remove the fuser-motor assembly (4 of 6)
2
1
5. Remove three screws (callout 1), and then remove the fuser-motor assembly.
Figure 1-97 Remove the fuser-motor assembly (5 of 6)
13
