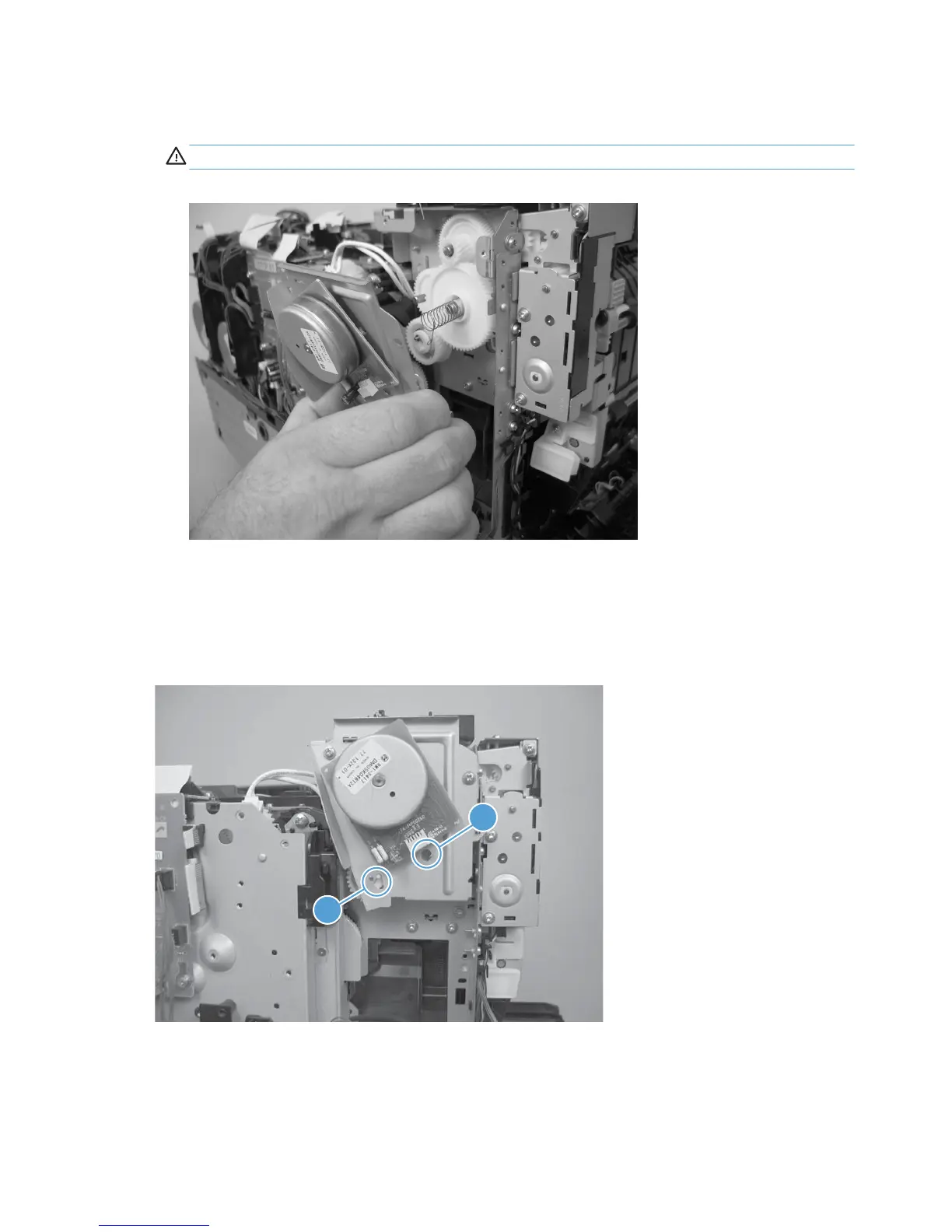

6. Before you proceed, take note that the spring and the gears behind the fuser-motor assembly are not
captive.
CAUTION: Do not lose the spring or gears when you remove the fuser-motor assembly.
Figure 1-98 Remove the fuser-motor assembly (6 of 6)
Reinstall the fuser-motor assembly
Make sure that the fuser-motor assembly spring (callout 1) and gear pin (callout 2) are correctly positioned in
the hole and slot provided in the assembly mounting bracket. The assembly mounting bracket will fit flat
against the product chassis when the fuser-motor assembly is correctly installed.
Figure 1-99 Reinstall the fuser-motor assembly
