HP LaserJet Pro Color MFP M476dn - Page 93

High-voltage power-supply PCA
Before proceeding, remove the following components:
●
Right cover. See Right cover on page 25.
●
Scanner assembly. See Scanner assembly on page 17.
●
Rear door. See Rear door on page 30.
●
Rear-lower cover. See Rear-lower cover and rear-door links on page 32.
●
Upper-cover assembly. See Upper-cover assembly on page 42.
●
Left cover. See Left cover on page 45.
Remove the high-voltage power-supply PCA
1. Remove two screws (callout 1), and then remove the sheet-metal plate (callout 2).

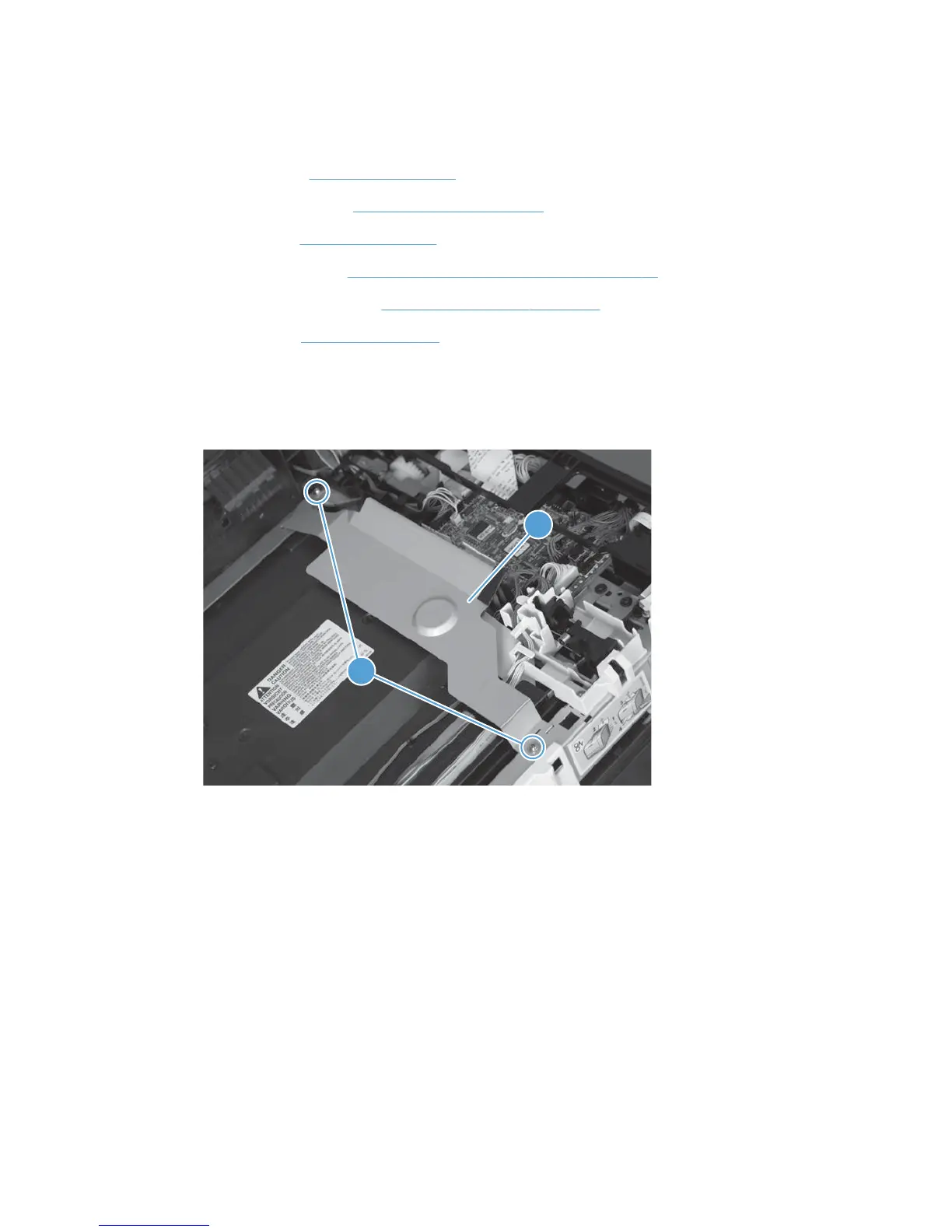

Figure 1-100 Remove the high-voltage power-supply PCA (1 of 5)
2
1
