HP LaserJet Pro Color MFP M476dn - Page 94

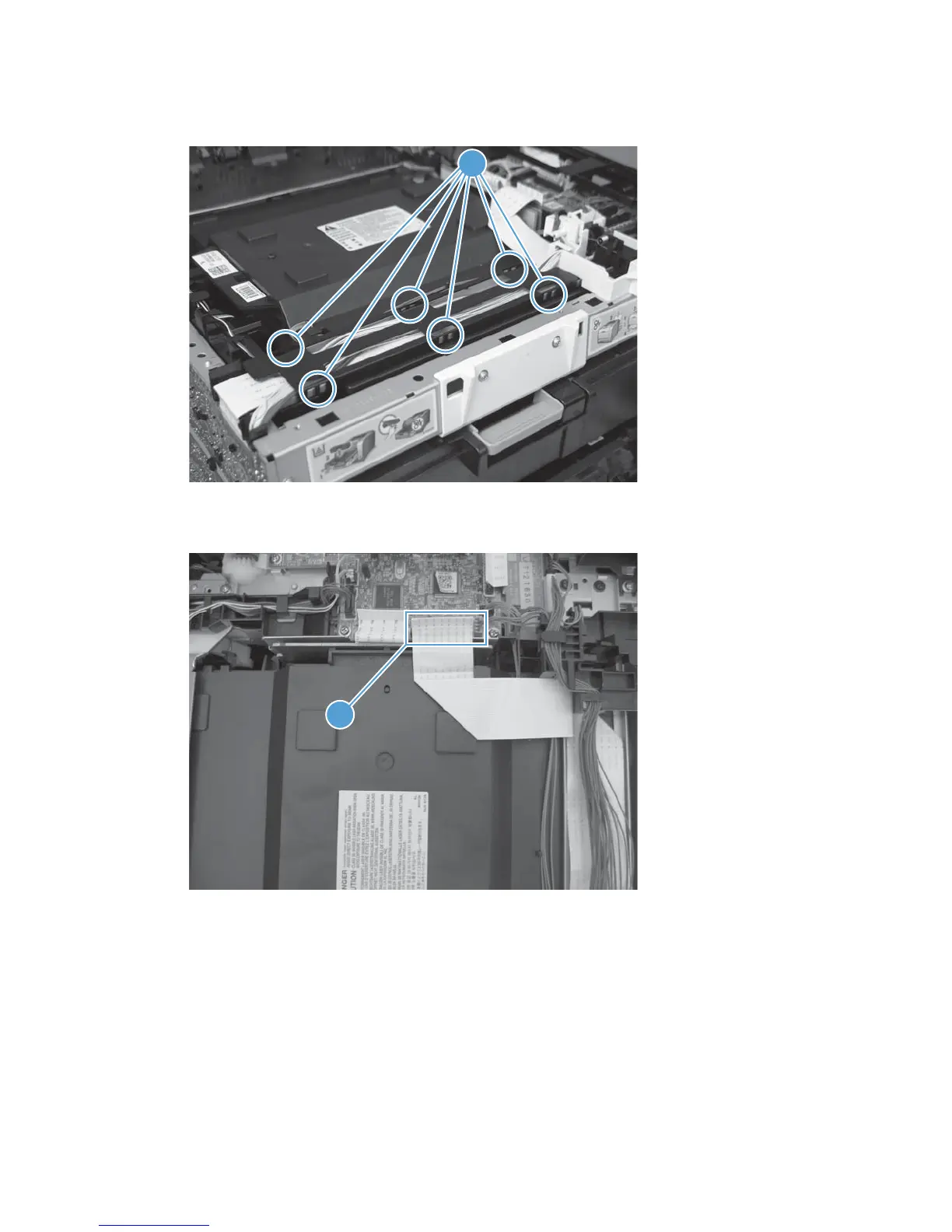

2. Release six tabs (callout 1), and then remove the black-plastic cover.
Figure 1-101 Remove the high-voltage power-supply PCA (2 of 5)
1
3. Disconnect one FFC (callout 1) on the DC controller.
Figure 1-102 Remove the high-voltage power-supply PCA (3 of 5)
1
76 Chapter 1 Removal and replacement ENWW
