Color-misregistration sensor assembly
Before proceeding, remove the following components:
●
Print-cartridge drawer. See Print-cartridge drawer on page 22.
●
Right cover. See Right cover on page 25.
●
Scanner assembly. See Scanner assembly on page 17.
●
Rear-lower cover. See Rear-lower cover and rear-door links on page 32.
●
Upper-cover assembly. See Upper-cover assembly on page 42.
●
Left cover. See Left cover on page 45.
●
High-voltage power-supply PCA. See High-voltage power-supply PCA on page 75.
Remove the color-misregistration sensor assembly
1. Disconnect one connector (callout 1), and then release the wire harness from the guide (callout 2).

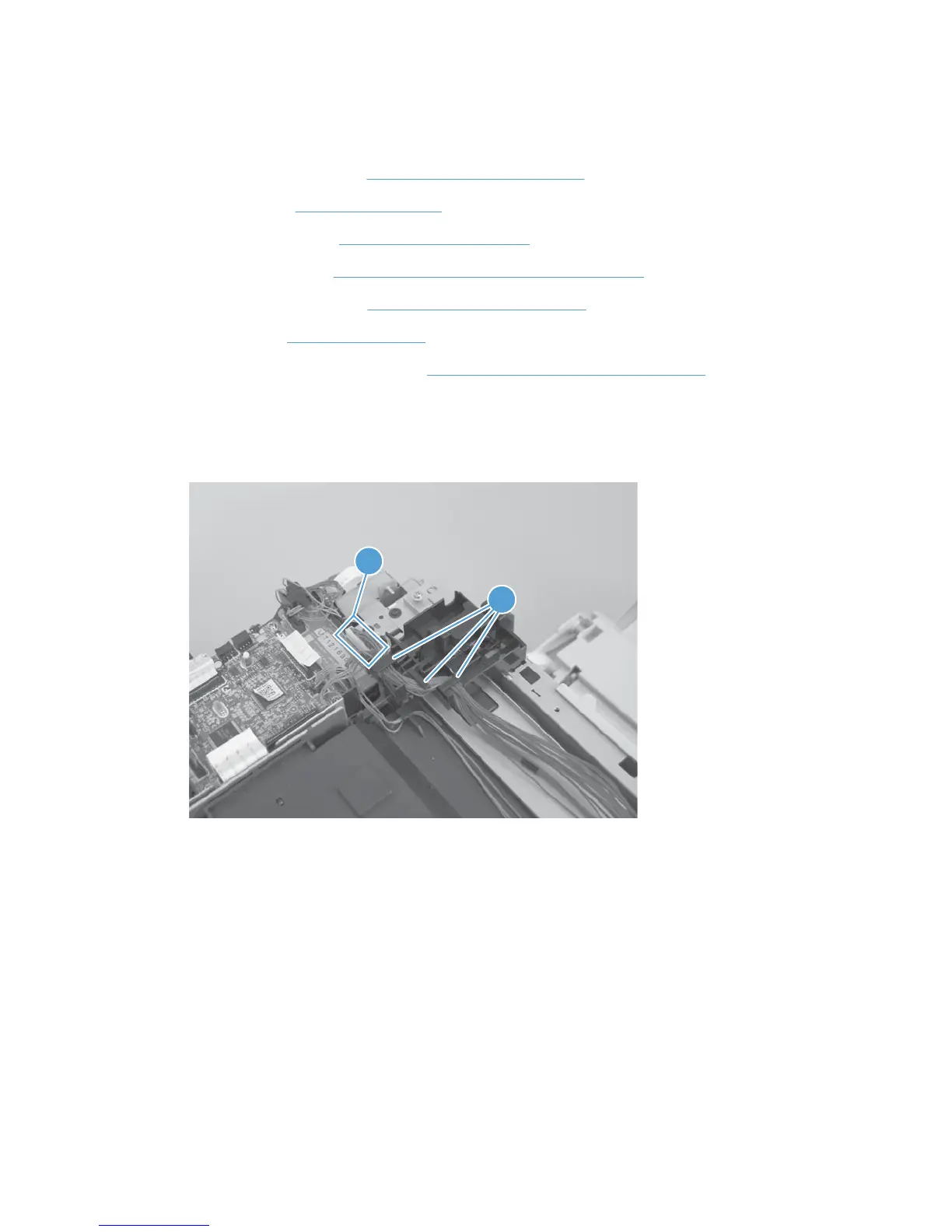

Figure 1-105 Remove the color-misregistration sensor assembly PCA (1 of 4)
