2. Release the wire harness from the guide (callout 1).
NOTE: When you remove the sensor assembly later in this procedure, pass the connector and wire
harness through the hole in the chassis (callout 2).

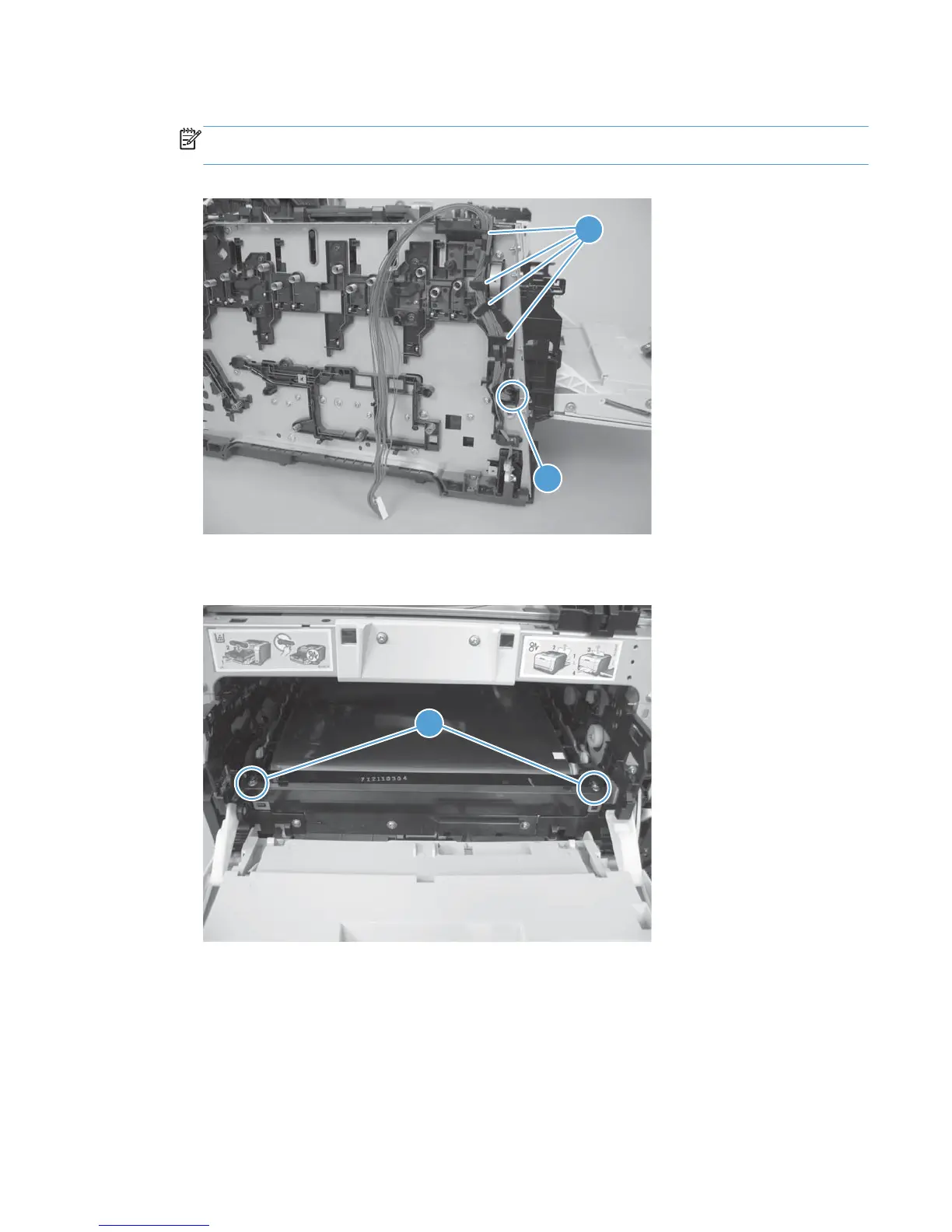

Figure 1-106 Remove the color-misregistration sensor assembly PCA (2 of 4)
1
2
3. Remove two screws (callout 1).
Figure 1-107 Remove the color-misregistration sensor assembly PCA (3 of 4)
1
