Reinstall the fuser
▲
To avoid damage to wire harnesses, make sure that they are correctly installed in the guides when
the fuser is reinstalled.

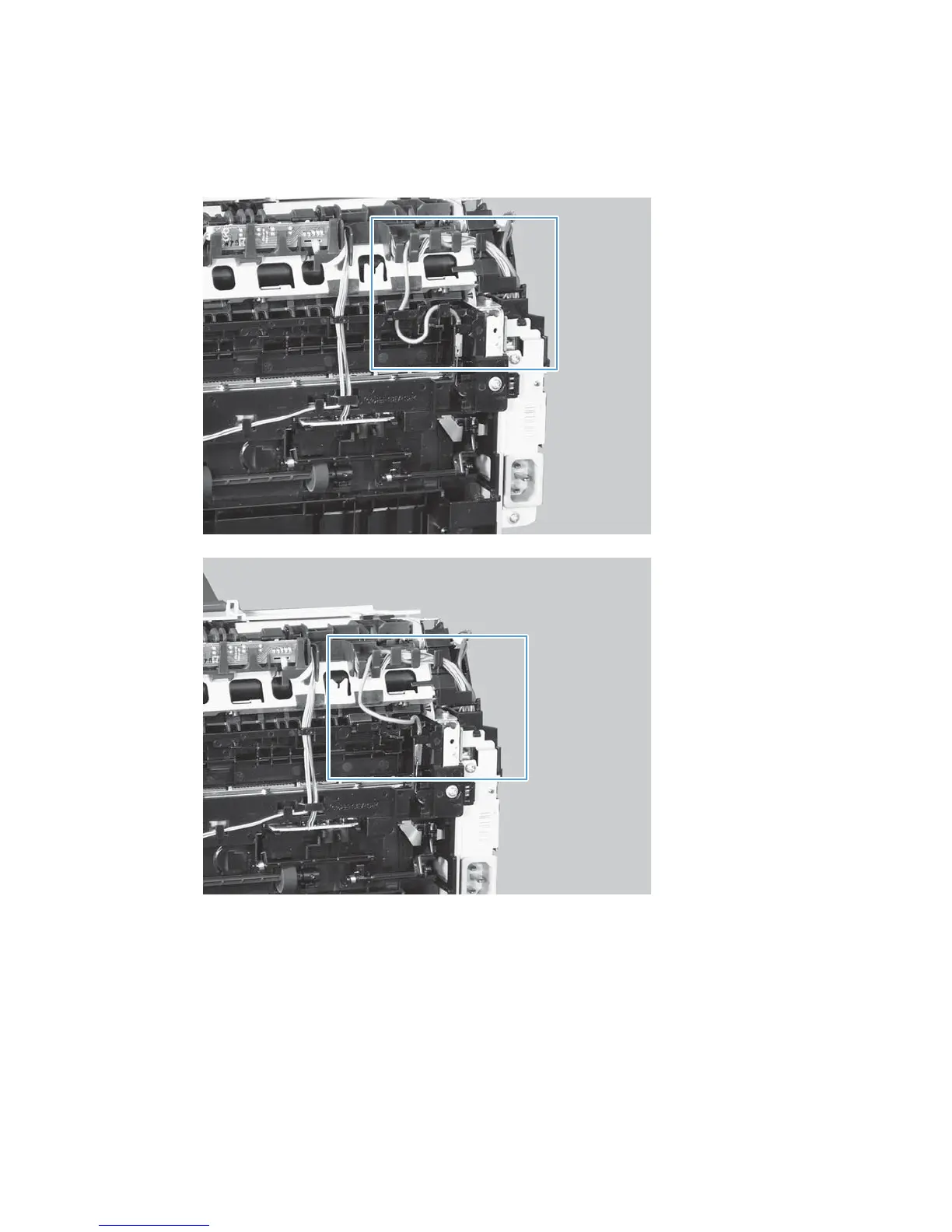

Figure 1-121 Reinstall the fuser; correct wire harness installation
Figure 1-122 Reinstall the fuser; incorrect wire harness installation
ENWW Main assemblies 83
