Reinstall the pickup assembly
1. Make sure that the pickup assembly ground spring is correctly positioned when the assembly is
reinstalled.

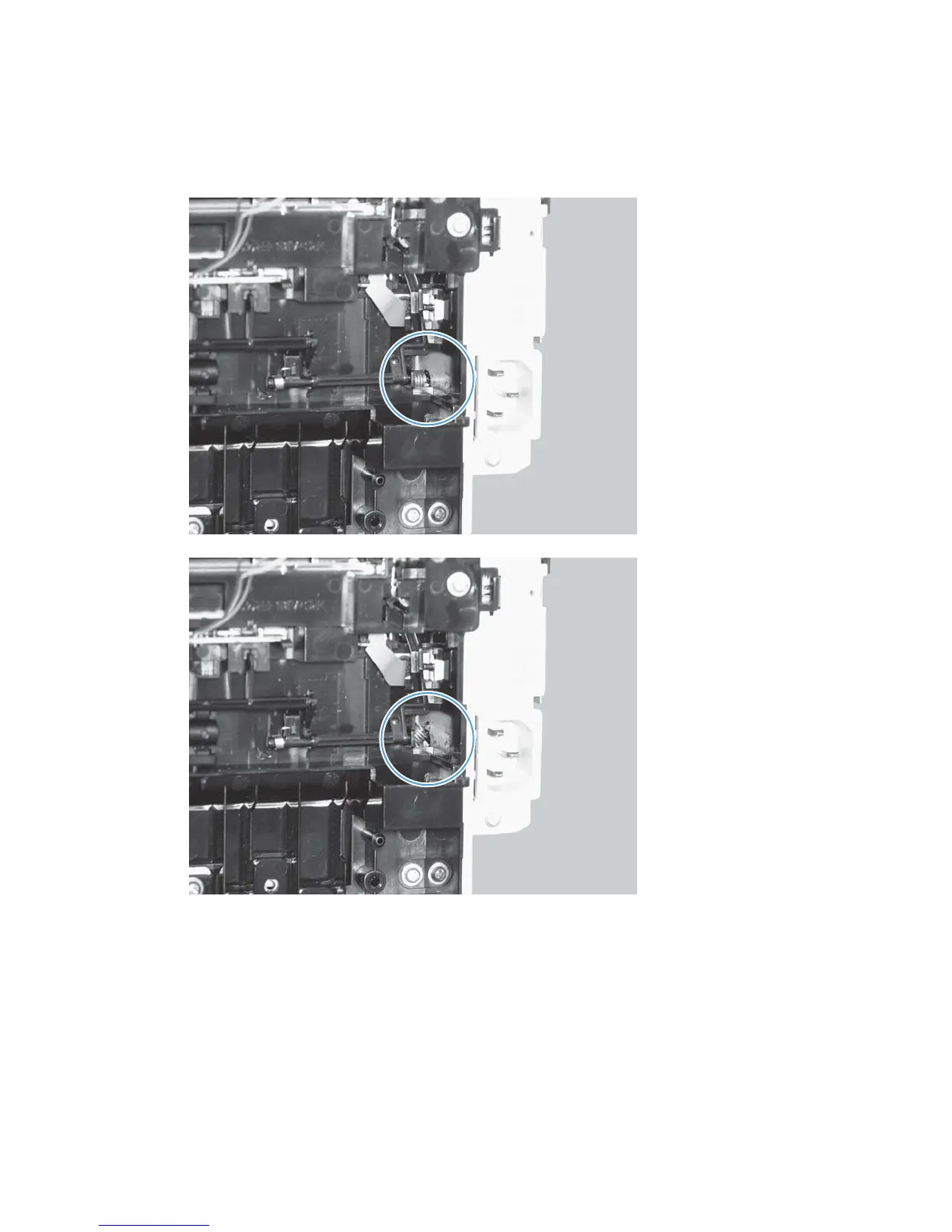

Figure 1-129 Reinstall the pickup assembly (1 of 4; correct ground spring position)
Figure 1-130 Reinstall the pickup assembly (2 of 4; incorrect ground spring position)
