2. Push down the lift plate before installing the pickup assembly.
TIP: Reach in from the front of the product to push and hold the plate down as the pickup unit is
installed.

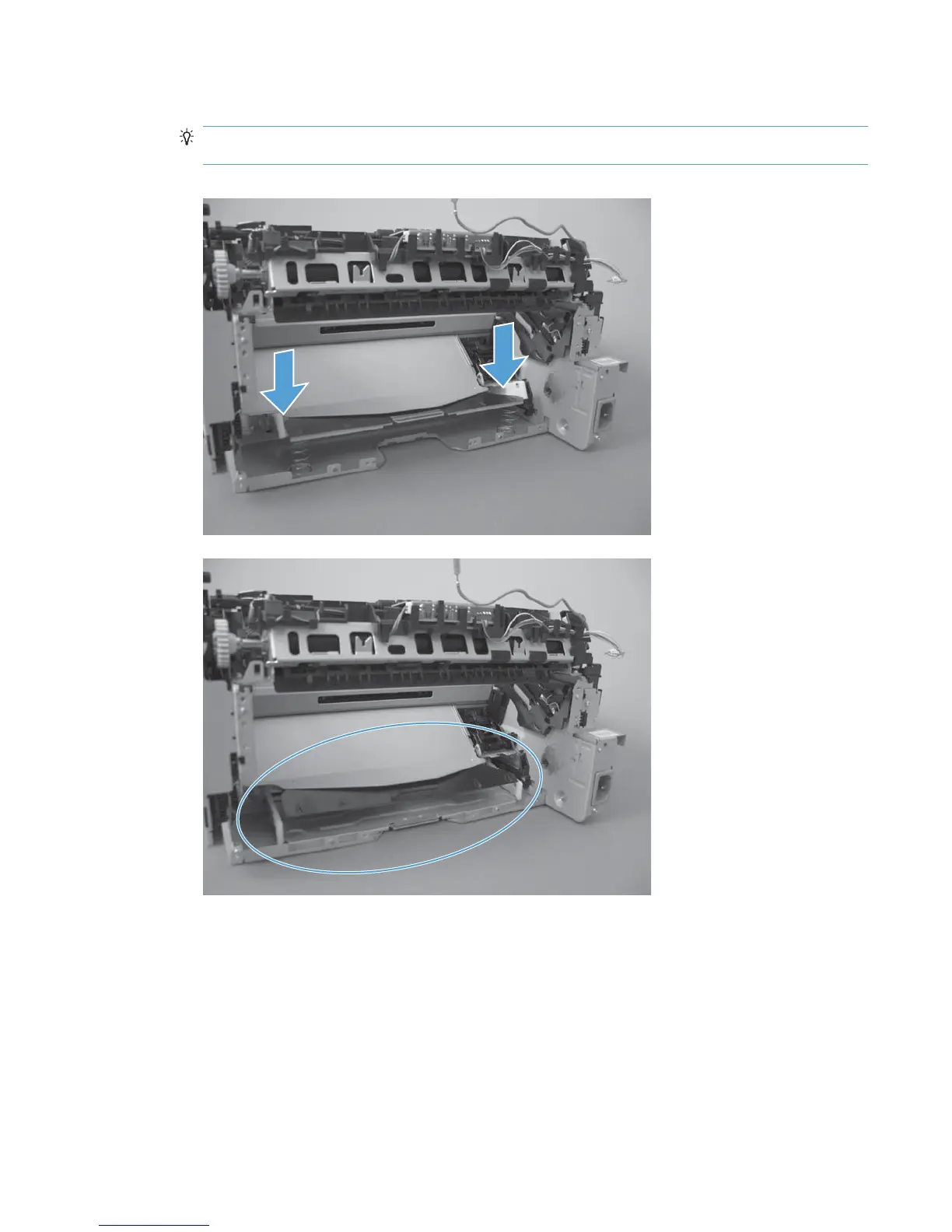

Figure 1-131 Reinstall the pickup assembly (3 of 4; lift plate in raised position)
Figure 1-132 Reinstall the pickup assembly (4 of 4; lift plate in lowered position)
ENWW Main assemblies 89
