Location of connectors

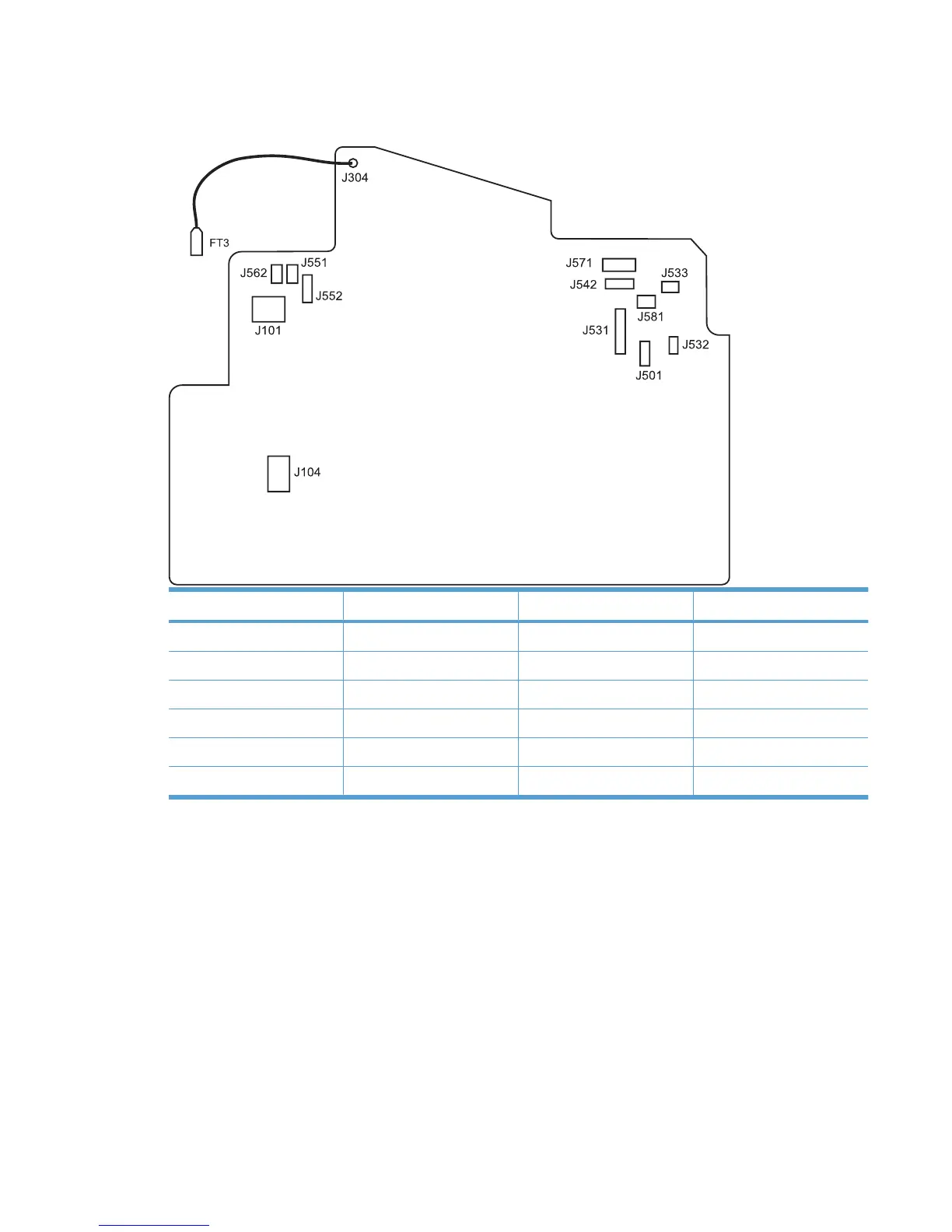

Figure 2-2 Engine controller PCA connectors
Item Description Item Description
J101 Fuser J551 Top sensor PCA
J104 Power inlet J552 Paper-pickup PCA
J304 High voltage J562 Pickup solenoid
J501 Test point J571 Motor drive PCA
J531 Formatter J581 Cartridge memory tag
J542 Laser/scanner
ENWW Tools for troubleshooting 111
