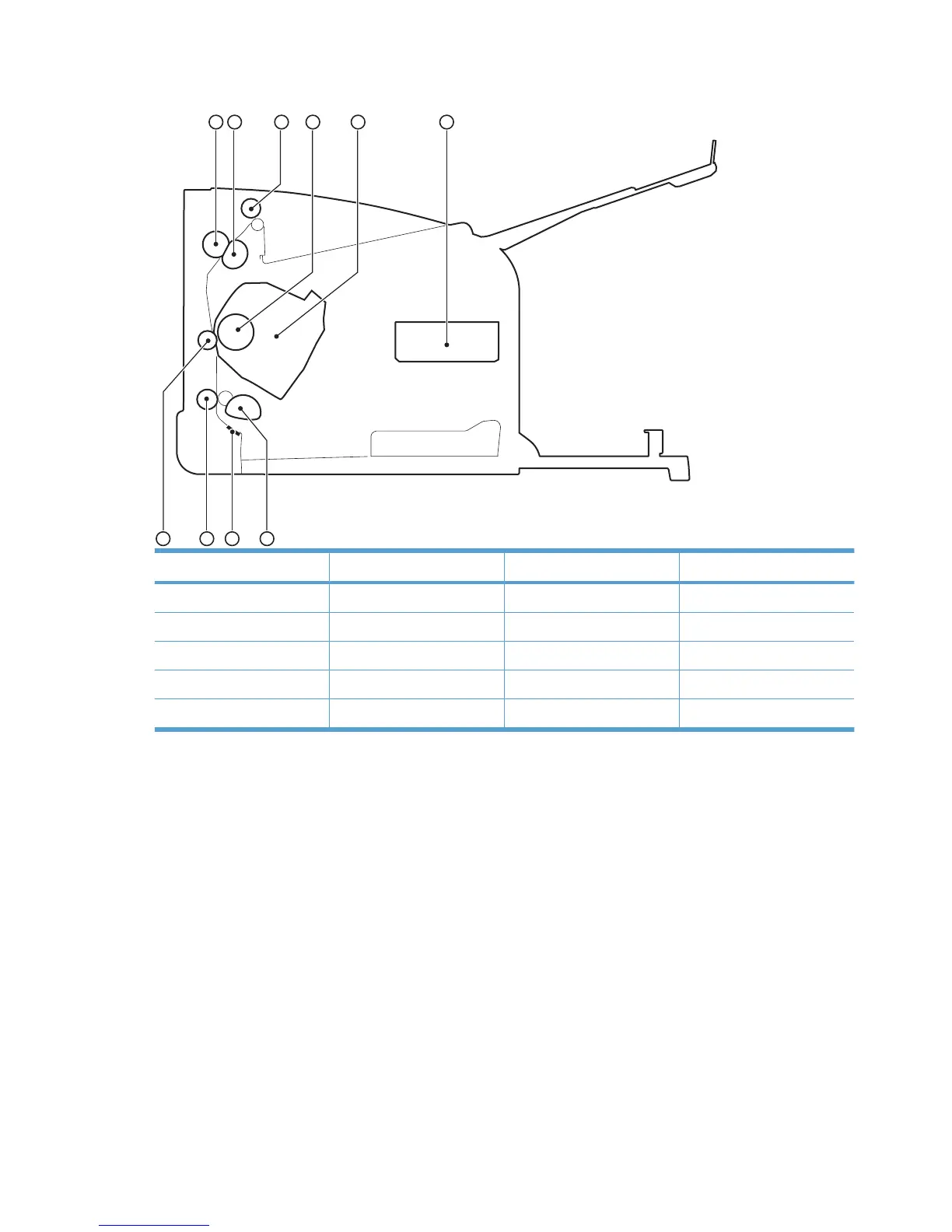

Figure 2-5 Cross section view
1
2
3
4
5
6
8
9
7
10
Item Description Item Description
1 Pressure roller 6 Laser/scanner
2 Fuser film assembly 7 Pickup roller
3 Delivery roller 8 Separation pad
4 Photosensitive drum 9 Feed roller
5 Print cartridge 10 Transfer roller
114 Chapter 2 Solve problems ENWW
