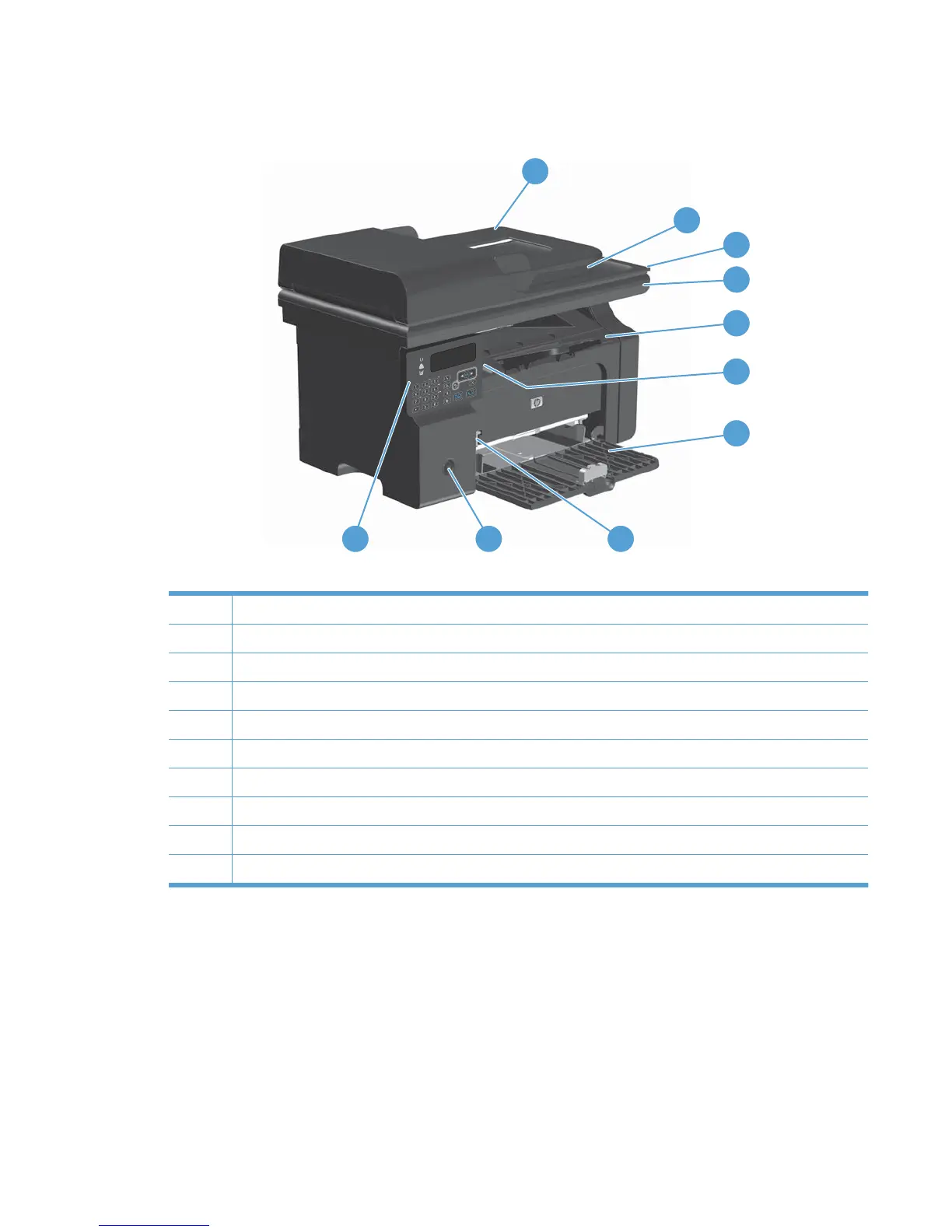

Figure 2-4 Locations of major components; HP LaserJet Professional M1210 MFP series
8
5
7
10
6
1
2
3
4
9
1 Document feeder
2 Document feeder output bin
3 Scanner lid
4 Scanner assembly
5 Output bin with extension for long paper
6 Print-cartridge door lift-tab
7 Input tray
8 Short-media extender tool
9 Power button
10 Control panel
ENWW Tools for troubleshooting 113
