Scanner assembly latch
NOTE: HP LaserJet Professional M1210 MFP series only.
●
Paper-delivery tray. See
Paper-delivery tray (output bin extension) on page 21.
●
Scanner assembly. See
Scanner assembly on page 30.
●
ADF top cover. See
ADF top cover on page 43.
●
ADF core. See
ADF core on page 45.
●
ADF tray. See
ADF tray on page 48.
●
ADF base. See
ADF base or scanner assembly lid on page 51.
●
Scanner assembly bezel. See
Scanner assembly bezel on page 53.
Remove the scanner assembly latch
Remove the latch and spring (callout 1).

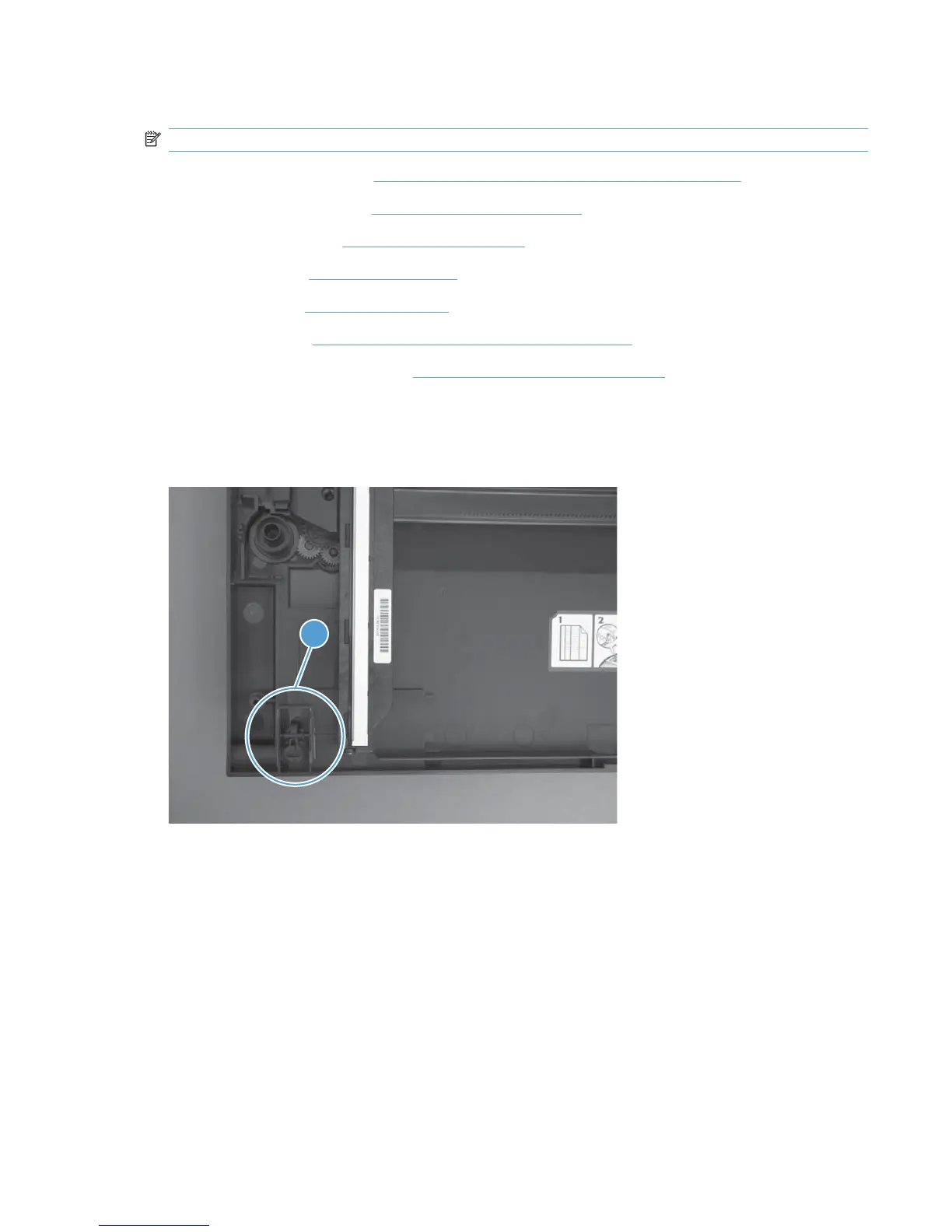

Figure 1-79 Remove the scanner assembly latch
1
ENWW Scanner components 55
