CIS scanner-carriage assembly
Before proceeding, remove the following components:
●
Paper-delivery tray. See
Paper-delivery tray (output bin extension) on page 21.
●
Scanner assembly. See
Scanner assembly on page 30.
●
ADF top cover (HP LaserJet Professional M1210 MFP series only). See
ADF top cover
on page 43.
●
ADF core (HP LaserJet Professional M1210 MFP series only). See
ADF core on page 45.
●
ADF tray (HP LaserJet Professional M1210 MFP series only). See
ADF tray on page 48.
●
ADF base or scanner assembly lid. See
ADF base or scanner assembly lid on page 51.
●
Scanner assembly bezel. See
Scanner assembly bezel on page 53.
Remove the CIS scanner-carriage assembly
1. Lift the CIS scanner-carriage assembly (callout 1) out of the scanner.
CAUTION: The CIS scanner-carriage assembly is still connected to the scanner assembly by the
FFC.

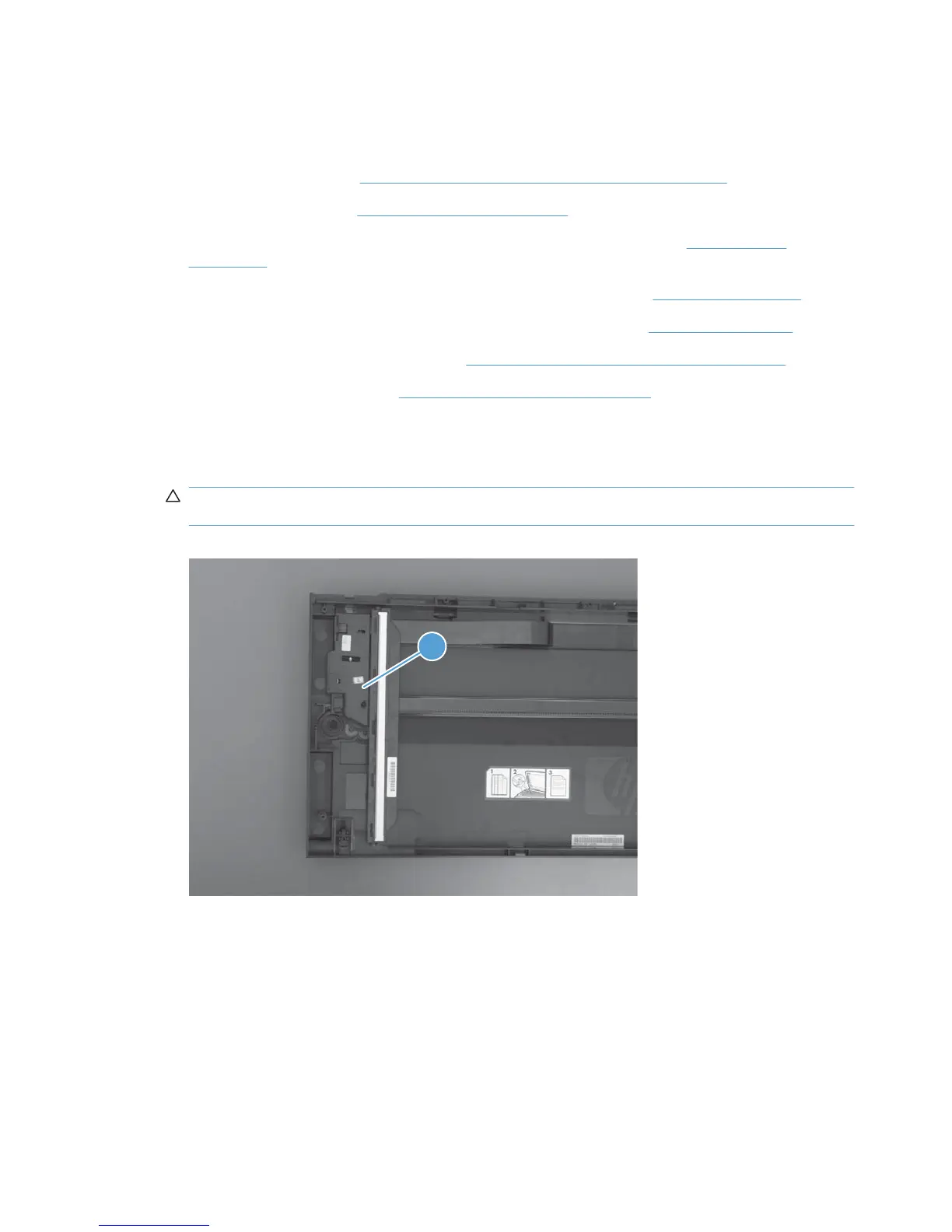

Figure 1-80 Remove the CIS scanner-carriage assembly (1 of 2)
1
