2. Disconnect two FFCs (callout 1) and then remove the CIS scanner assembly.
NOTE: HP LaserJet Professional M1210 MFP series shown below.

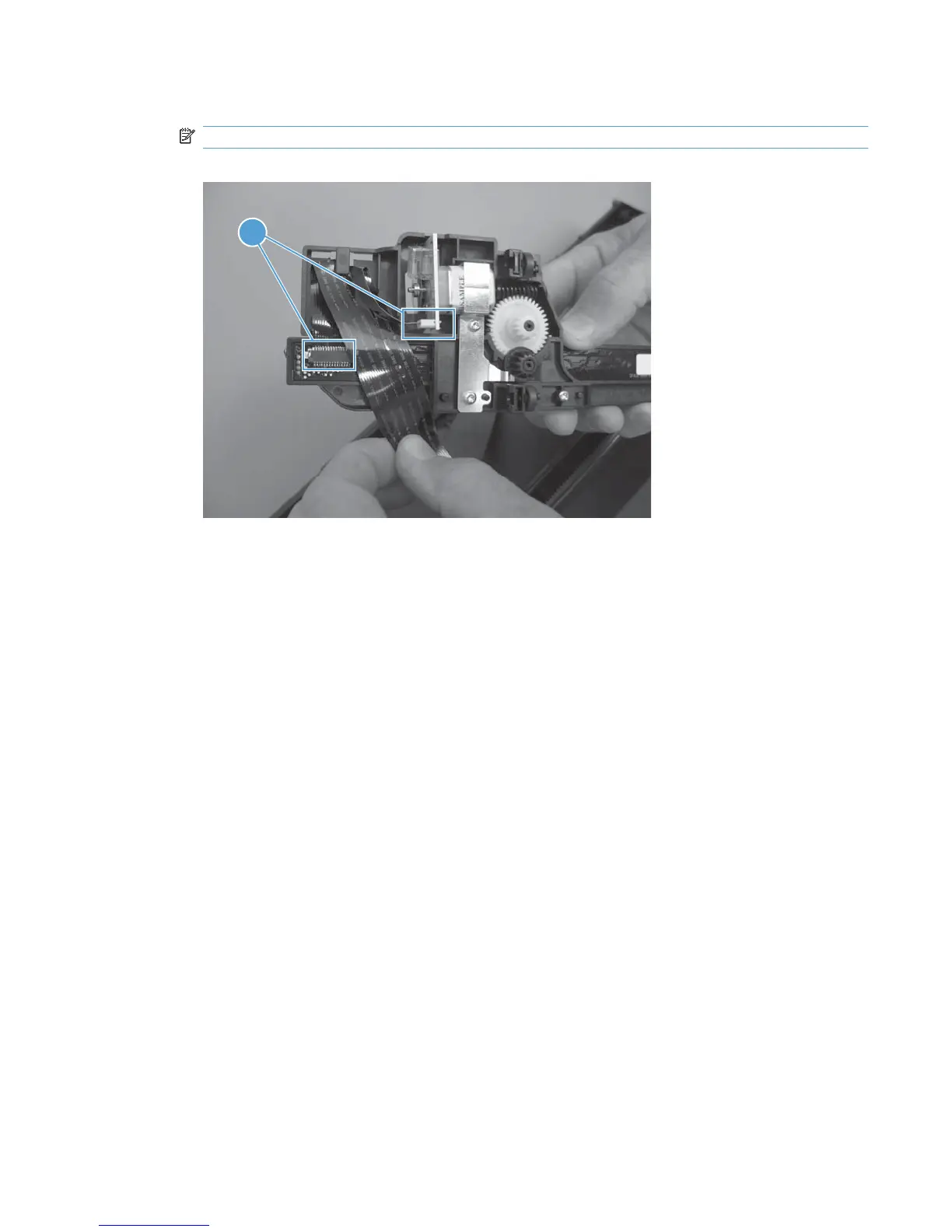

Figure 1-81 Remove the CIS scanner-carriage assembly (2 of 2)
1
ENWW Scanner components 57
