CIS scanner motor, gears, and scanner light bar
Before proceeding, remove the following components:
●
Paper-delivery tray. See
Paper-delivery tray (output bin extension) on page 21.
●
Scanner assembly. See
Scanner assembly on page 30.
●
ADF top cover (HP LaserJet Professional M1210 MFP series only). See
ADF top cover
on page 43.
●
ADF core (HP LaserJet Professional M1210 MFP series only). See
ADF core on page 45.
●
ADF tray (HP LaserJet Professional M1210 MFP series only). See
ADF tray on page 48.
●
ADF base or scanner assembly lid. See
ADF base or scanner assembly lid on page 51.
●
Scanner assembly bezel. See
Scanner assembly bezel on page 53.
Remove the CIS scanner motor, gears, and scanner light bar
The HP LaserJet Professional M1210 MFP series CIS scanner assembly is shown in the figures below.
1. Turn the CIS scanner upside down to expose the motor and gears.

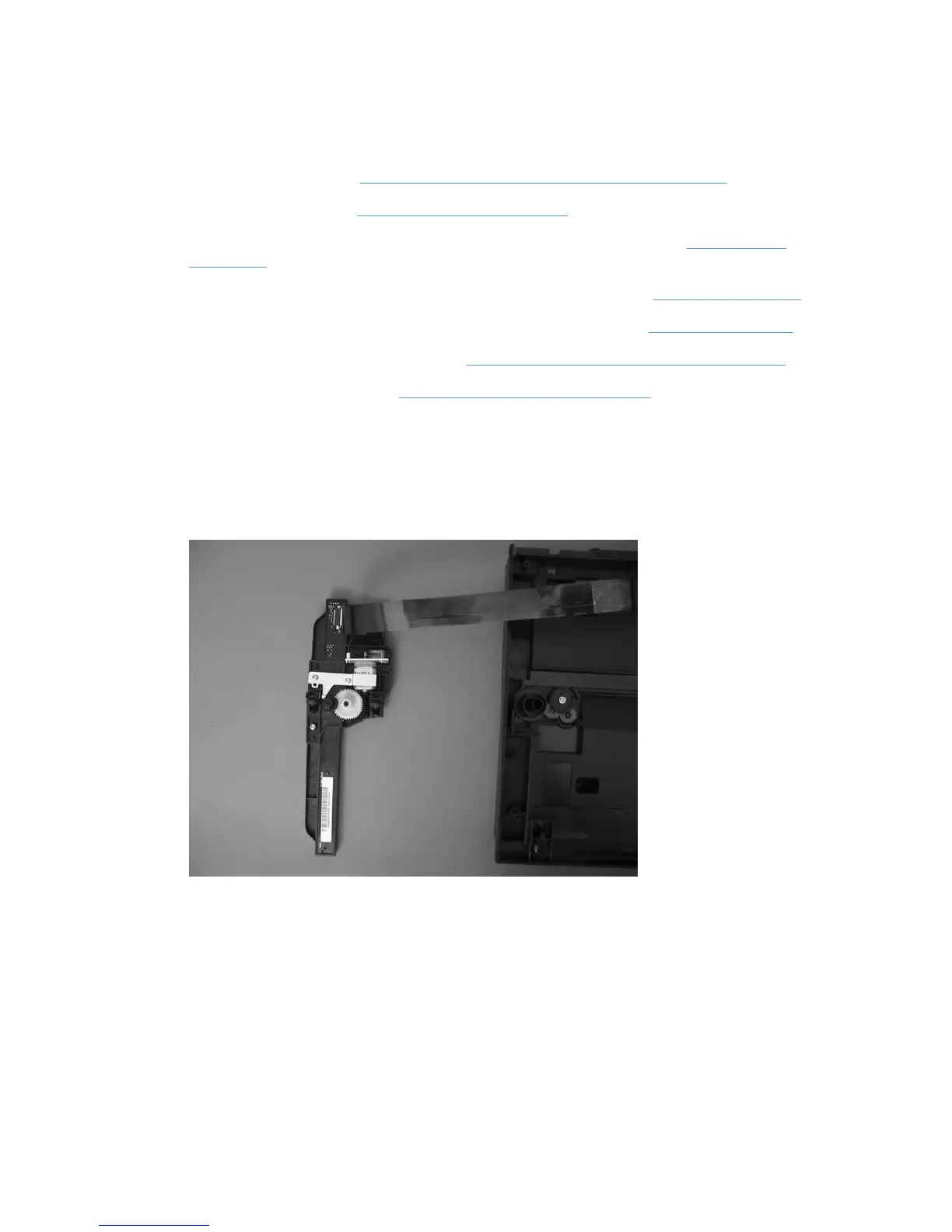

Figure 1-82 Remove the CIS scanner motor, gears, and scanner light bar (1 of 4)
58 Chapter 1 Removal and replacement ENWW
