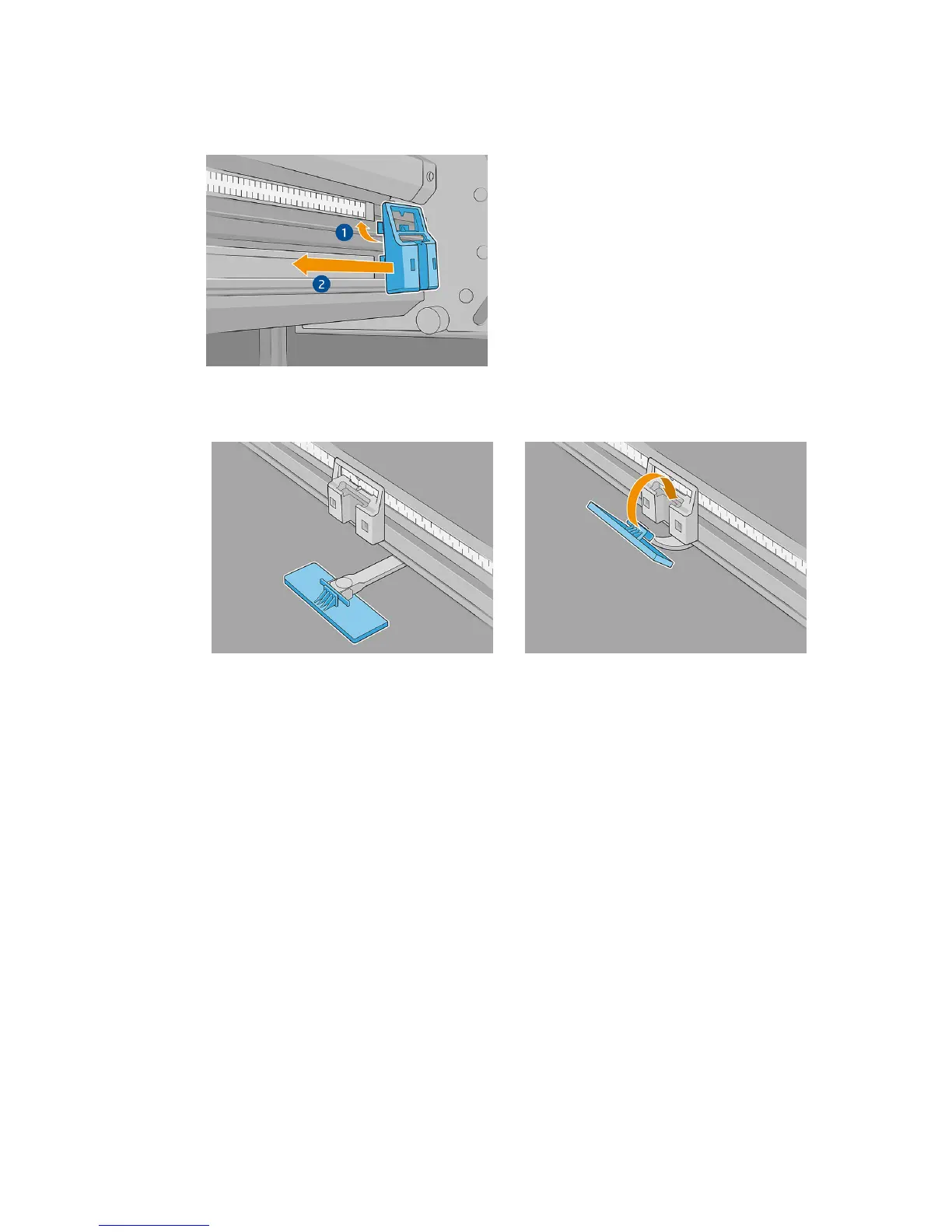

5. At the output side of the printer, install the back end at the ruler, inserting it by the edge and sliding it to the

correct position: that suggested by the Internal Print Server, or the same position that you used on the

input side of the printer.

6. Pull the handle and insert it into the back end. Visually check through the print zone that the edge holders

are straight when pulling the handle.

7. In the same way, install the other edge holder on the other side of the substrate.

You can now print as normal.

Uninstall the edge holders

1. In the Internal Print Server, tap Topmost in the Scan Beam menu. This moves the scan-axis beam and the

curing module to their highest positions.

20 Chapter 3 Using the substrate edge holders with exible substrates ENWW
