HP Latex R1000 User Manual

Substrate
thickness (mm)
Edge holder
height (mm) Type of base
Shim thickness
0.5 mm 1 mm 3 mm 5 mm
12.6–13.0 13.0 3
13.1–13.5 13.5 1 3
13.6–14.0 14.0 2
14.1–14.5 14.5 1 2
14.6–15.0 15.0 1 2
15.1–15.5 15.5 1 1 2
15.6–16.0 16.0 2 2
16.1–16.5 16.5 1 2 2
16.6–17.0 17.0 1 2
17.1–17.5 17.5 1 1 2
17.6–18.0 18.0 1 1 2

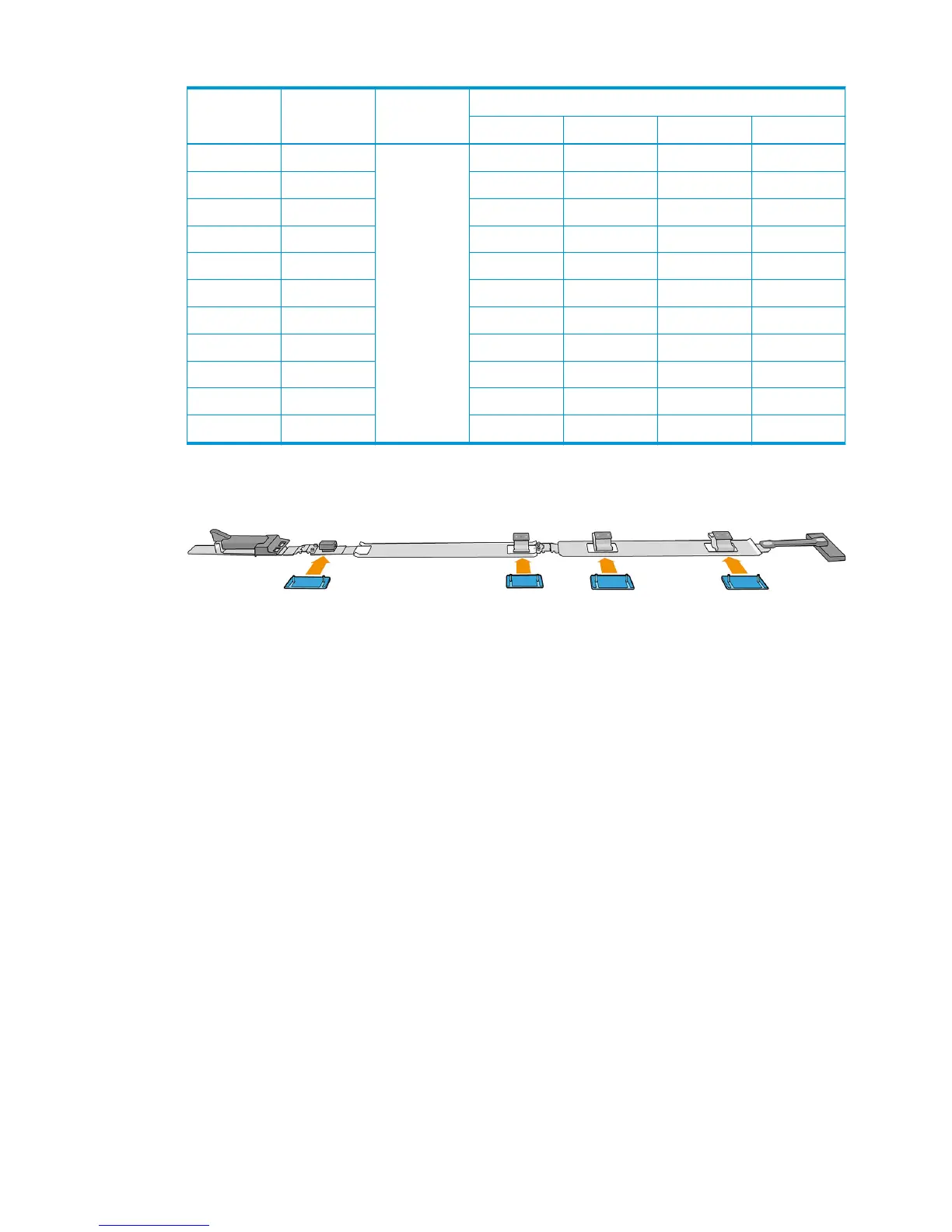

Install the base and the shims at all points shown in the illustration below: two assemblies at the central module
and two more at the output module.
Installation process
1. Calculate the required height and take the base and shims that you need.
ENWW How to install shims 5

HP Latex R1000 Specifications

General

Ink Types	HP Latex Inks
Print Technology	Latex
Print Resolution	1200 x 1200 dpi
Media Handling	Roll-to-roll
Applications	Signage, banners
Ink Colors	Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta
Part Number	CZ103A (Cyan), CZ104A (Magenta), CZ105A (Yellow), CZ106A (Black), CZ107A (Light Cyan), CZ108A (Light Magenta), CZ109A (White), CZ110A (Primer)
