RAID controller card features
Each internal connector, labelled (1) and (2), supports up to four SAS hard drives.
The hard drive activity LED is connector (3).

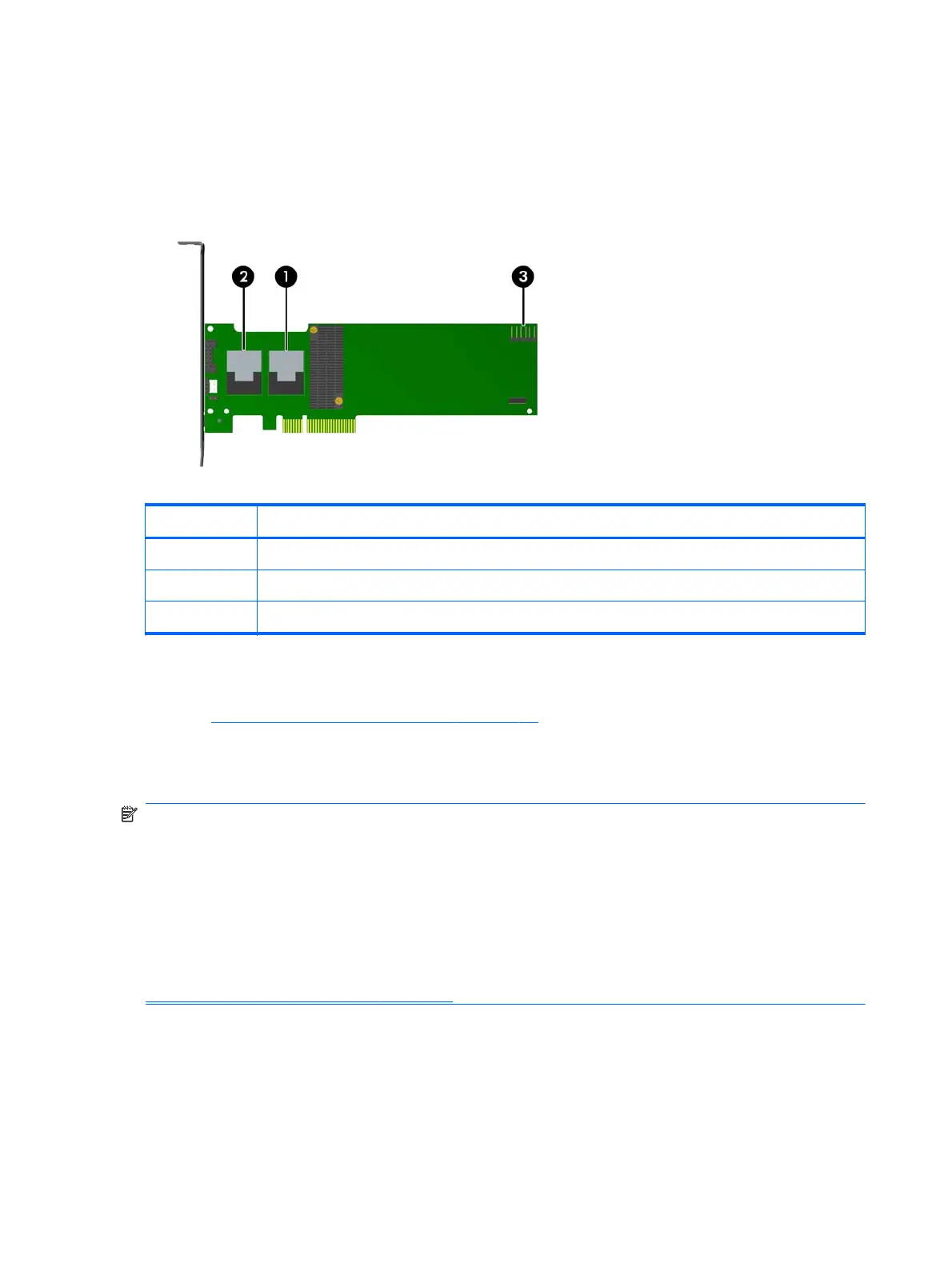

Figure 3 Identifying the SAS controller ports
Table 2 Port connectors
Connector Description
(1) Internal connector 1 (SFF-8087 MiniSAS labelled JT6)
(2) Internal connector 2 (SFF-8087 MiniSAS labelled JT7)
(3) Hard drive LED connector (2-pin connector labelled JT2)
Card BIOS default settings:
●
See
Step 6—Configuring RAID devices on page 11 for information about setting and resetting
card BIOS defaults.
Blind-mate data cable connections
NOTE: This procedure assumes that the primary hard drive is located in HDD-BAY-0, and that all
internal bays are being connected to the RAID controller.
• It is not necessary to connect all internal drives or use all four of the connectors on the MiniSAS
internal adapter cable.
• The short MiniSAS 4i-4X SATA cable is used only to connect SAS hard drives located in the internal
hard drive bays of HP Z Workstations with blind-mate cabling.
• A long MiniSASi data cable is used to connect SAS hard drives located in the optical drive bays. See
Standard data cable connections on page 8.
