For internal SAS hard drives in HP workstations with preinstalled blind-mate cabling plugged into the
system board, such as HP Z600 and HP Z800 Workstations:
1.
Locate and disconnect the HDD-BAY-0 cable from the system board SAS connectors.

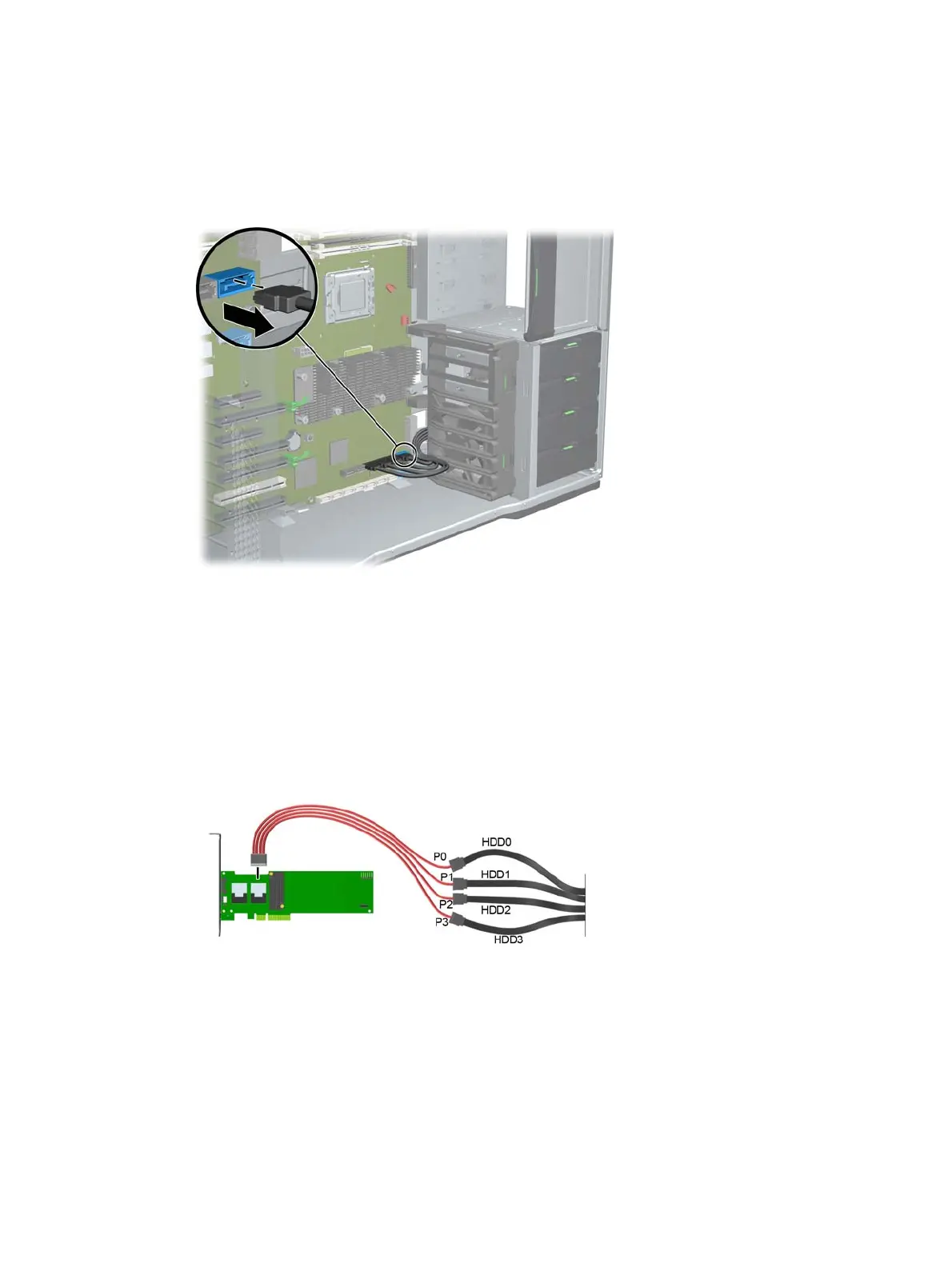

Figure 4 Locating the blind-mate hard drive cables
2.
To connect the SAS hard drive data cables to the MiniSAS 4i to 4X SATA internal adapter cable:
a.
Connect the HDD-BAY-0 cable to port 0 (P0) on the MiniSAS internal adapter cable.
b.
Match the subsequent HDD-BAY cables to the corresponding port on the MiniSAS internal
adapter cable.
c.
For RAID configuration, populate the internal hard drive bays before populating the optical
bays with hard drives.
Figure 5 Connecting the hard drive cables to the MiniSAS adapter cable
ENWW
Step 3—Configuring the cabling
7
