Separation pad (Tray 1)
CAUTION: Do not touch the spongy roller surface unless you are replacing the roller. Skin oils on the roller
can cause paper pickup problems.

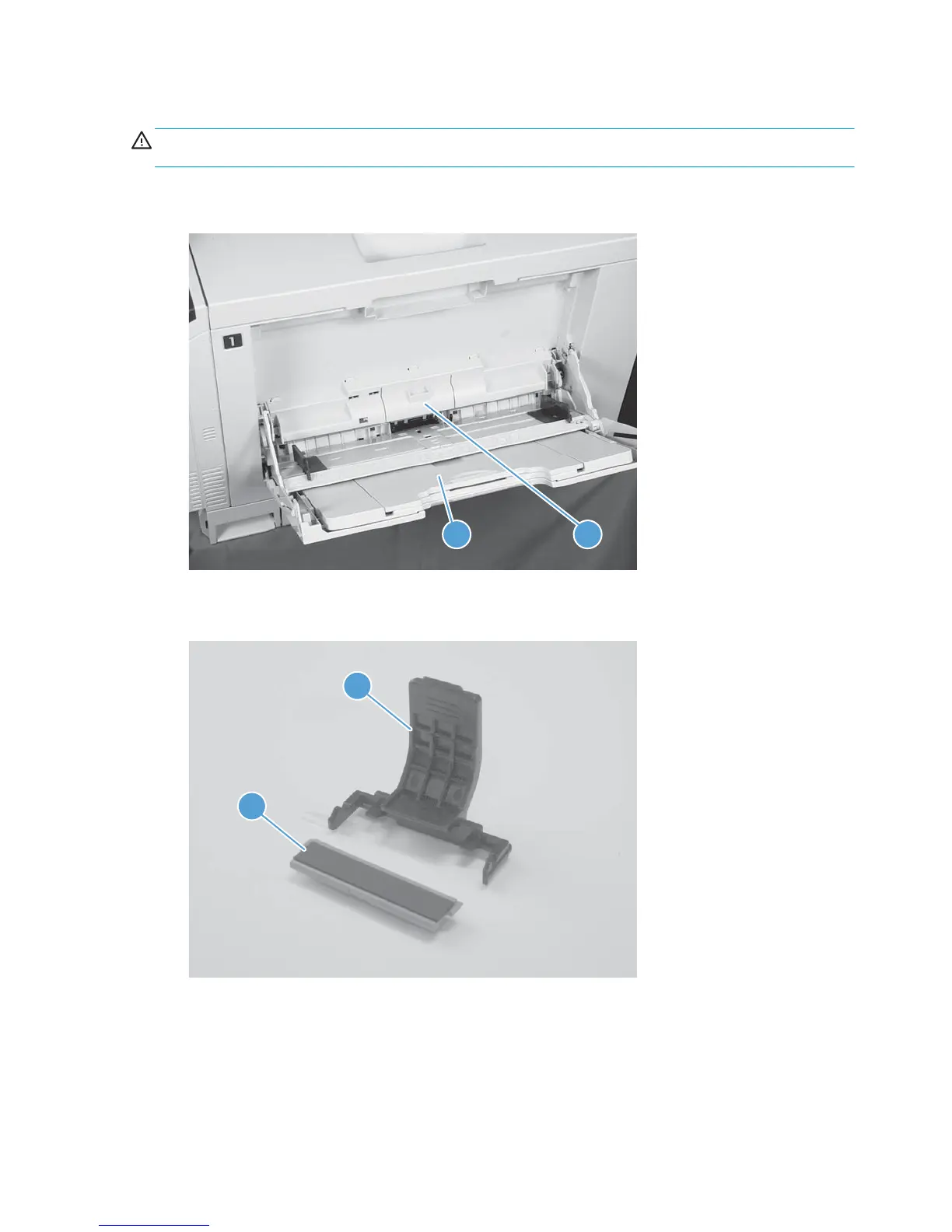

1. Open Tray 1 (callout 1), and then remove the pickup roller cover (callout 2).
Figure 2-8 Remove the separation pad (Tray 1) (1 of 4)
1 2
2. Take out the tool (callout 2) supplied with a new separation pad (callout 1).
Figure 2-9 Remove the separation pad (Tray 1) (2 of 4)
1
2
92 Chapter 2 Removal and replacement ENWW
