Right-door assembly
Remove the following components:
●
Rear cover (see
Rear cover on page 111)
●
Right rear cover (see
Right-rear cover on page 114)
1. Open the right-door assembly
2. Remove one screw (callout 1), release the link arm (callout 2), and then disconnect two connectors
(J152 and J112) on the DC controller (callout 3).
NOTE: The link arm is spring loaded and retracts into the product.

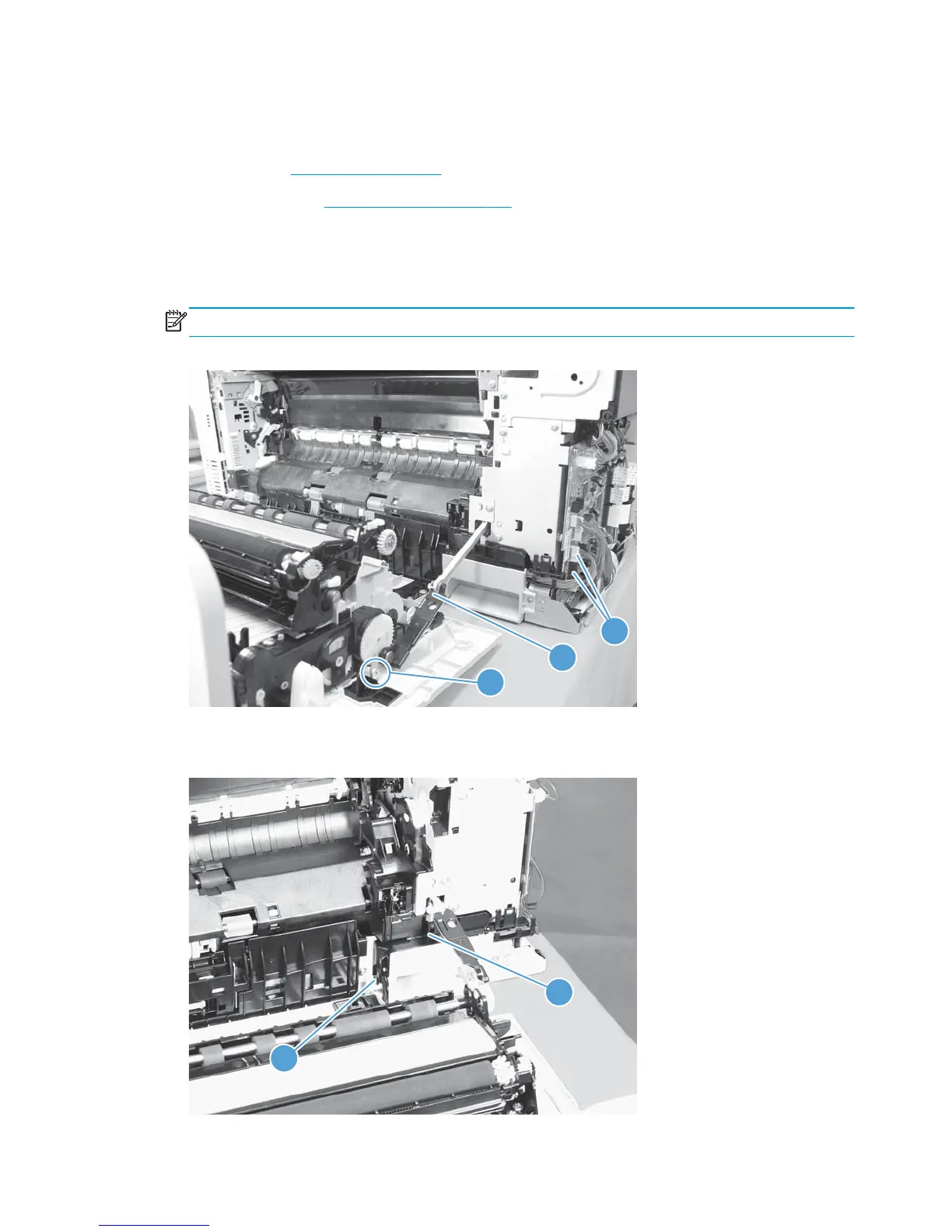

Figure 2-46 Remove the right-door assembly (1 of 6)
2
1
3
3. Carefully release one tab (callout 1), and then remove the cable cover (callout 2).
Figure 2-47 Remove the right-door assembly (2 of 6)
2
1
120 Chapter 2 Removal and replacement ENWW
