Paper pickup assembly
Before proceeding, remove the following components:
●
Tray 2 cassette.
●
Tray 2 separation roller assembly. See
Separation roller assembly (Tray 2) on page 94.
●
ITB. See
Intermediate transfer belt (ITB) on page 98.
Remove the paper pickup assembly
1. Open the right door, pull out one tab (callout 1), pull the bottom of the cable cover out, and then pull up
to remove the cable cover (callout 2).

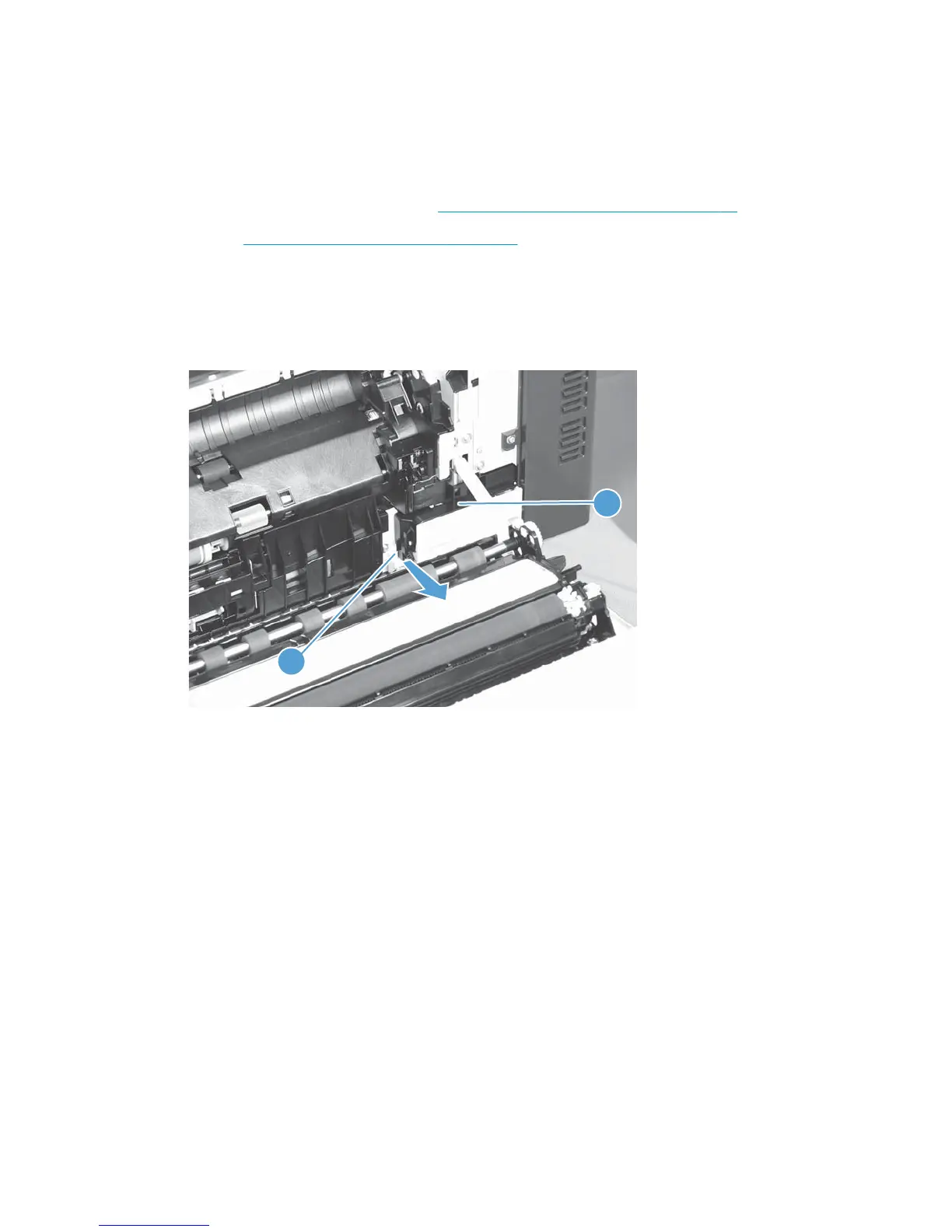

Figure 2-58 Remove the paper pickup assembly (1 of 3)
2
1
128 Chapter 2 Removal and replacement ENWW
