ITB front guide assembly
Before proceeding, remove the following components:
●
ITB. See
Intermediate transfer belt (ITB) on page 98.
●
Right-front cover and control-panel assembly. See
Right-front cover and control-panel assembly
on page 108.
●
Left cover. See
Left cover on page 110.
●
Rear cover. See
Rear cover on page 111.
●
Right-rear cover. See
Right-rear cover on page 114.
●
Top cover. See
Top cover on page 115.

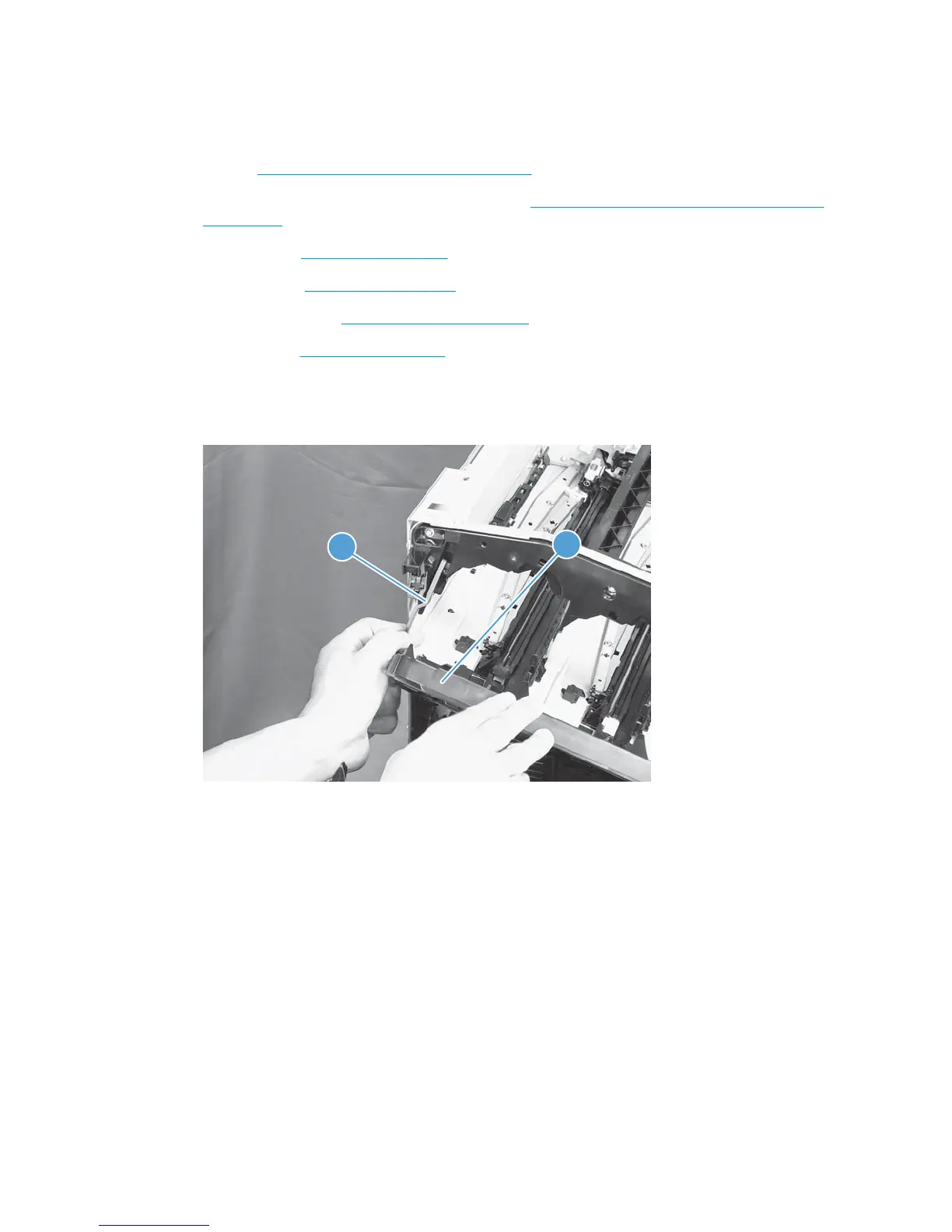

1. Open the front door (callout 1) halfway, and then push up the upper part of the link arm (callout 2) to
detach it from the product chassis.
Figure 2-73 Remove the ITB front guide assembly (1 of 4)
2
1
ENWW Removal and replacement procedures 141
