7. Disconnect three connectors (callout 1), remove two screws (callout 2), release one wire retainer
(callout 3), and then remove the driver PCA (callout 4).

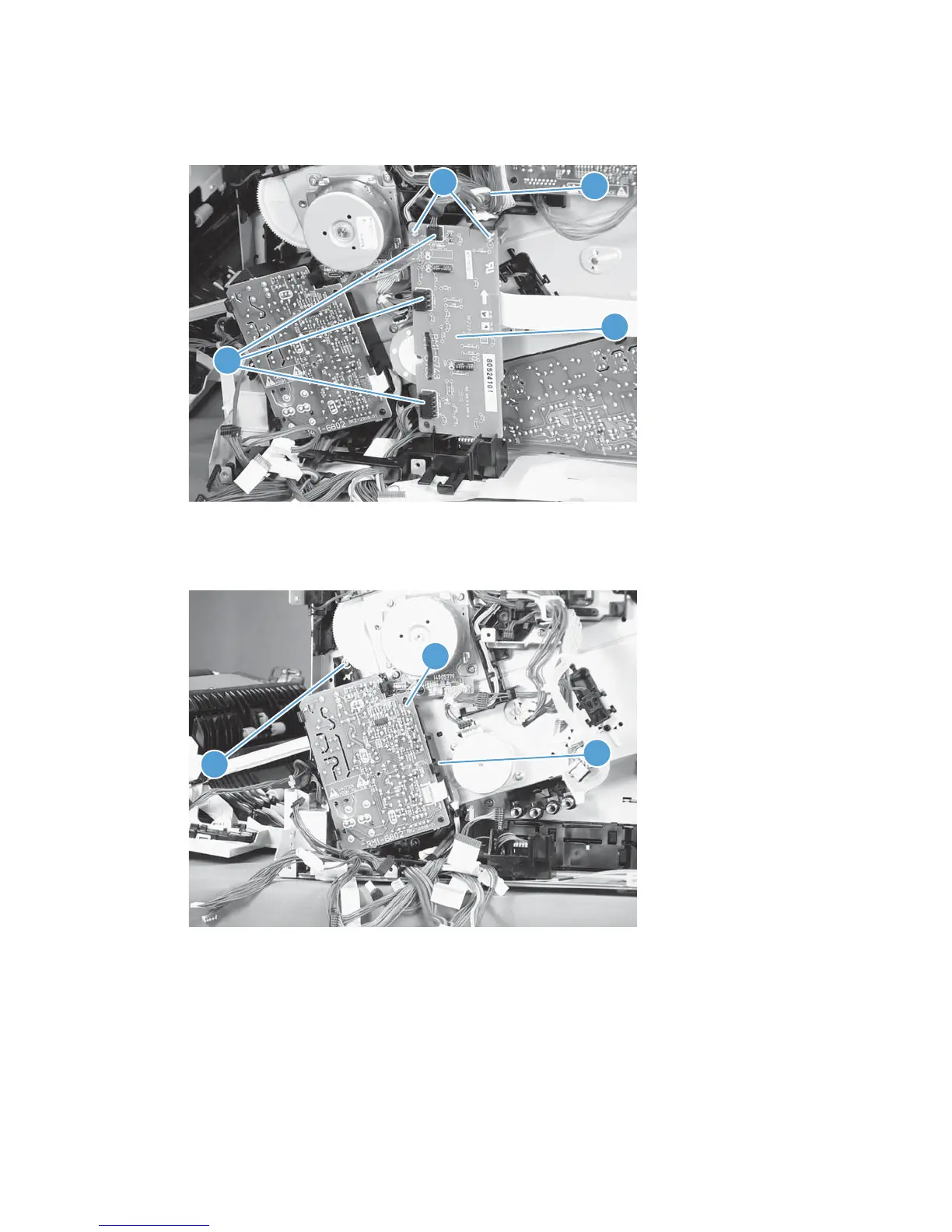

Figure 2-91 Remove the main drive assembly (7 of 17)
4
2
1
3
8. Remove one screw (callout 1), and then remove the second transfer high-voltage power supply (callout
2) and the PCA holder (callout 3) assembly.
Figure 2-92 Remove the main drive assembly (8 of 17)
3
2
1
154 Chapter 2 Removal and replacement ENWW
