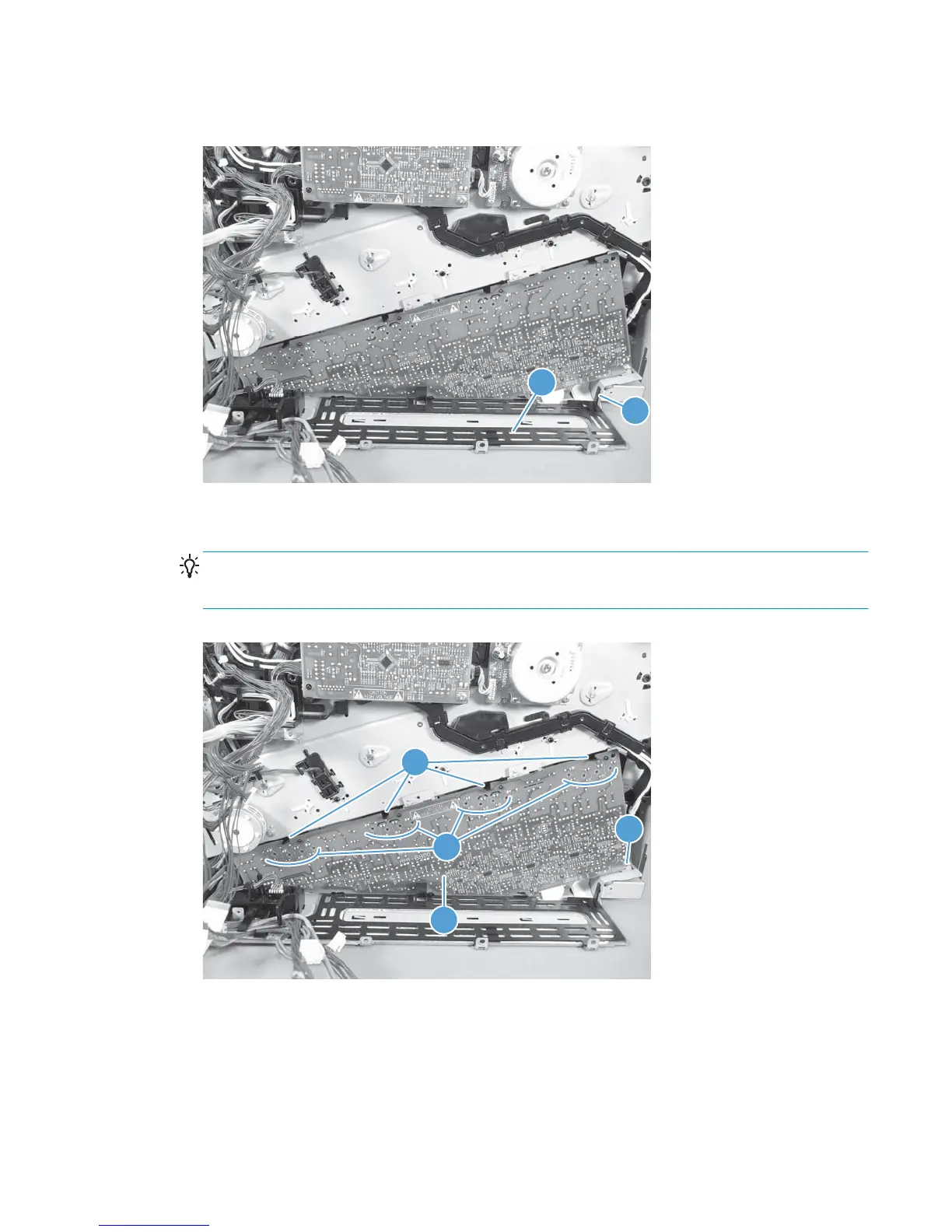

9. Release one tab (callout 1), and then remove the cover (callout 2).
Figure 2-93 Remove the main drive assembly (9 of 17)
2
1
10. Remove one screw (callout 1), release four tabs (callout 2), and then remove the developing high-
voltage power supply (callout 3).
Reinstallation tip When you reinstall the power supply PCA, look through the holes on the PCA
(callout 4) and make sure that the contact springs are correctly positioned against the back side of the
PCA.
Figure 2-94 Remove the main drive assembly (10 of 17)
1
2
3
4
ENWW Removal and replacement procedures 155
