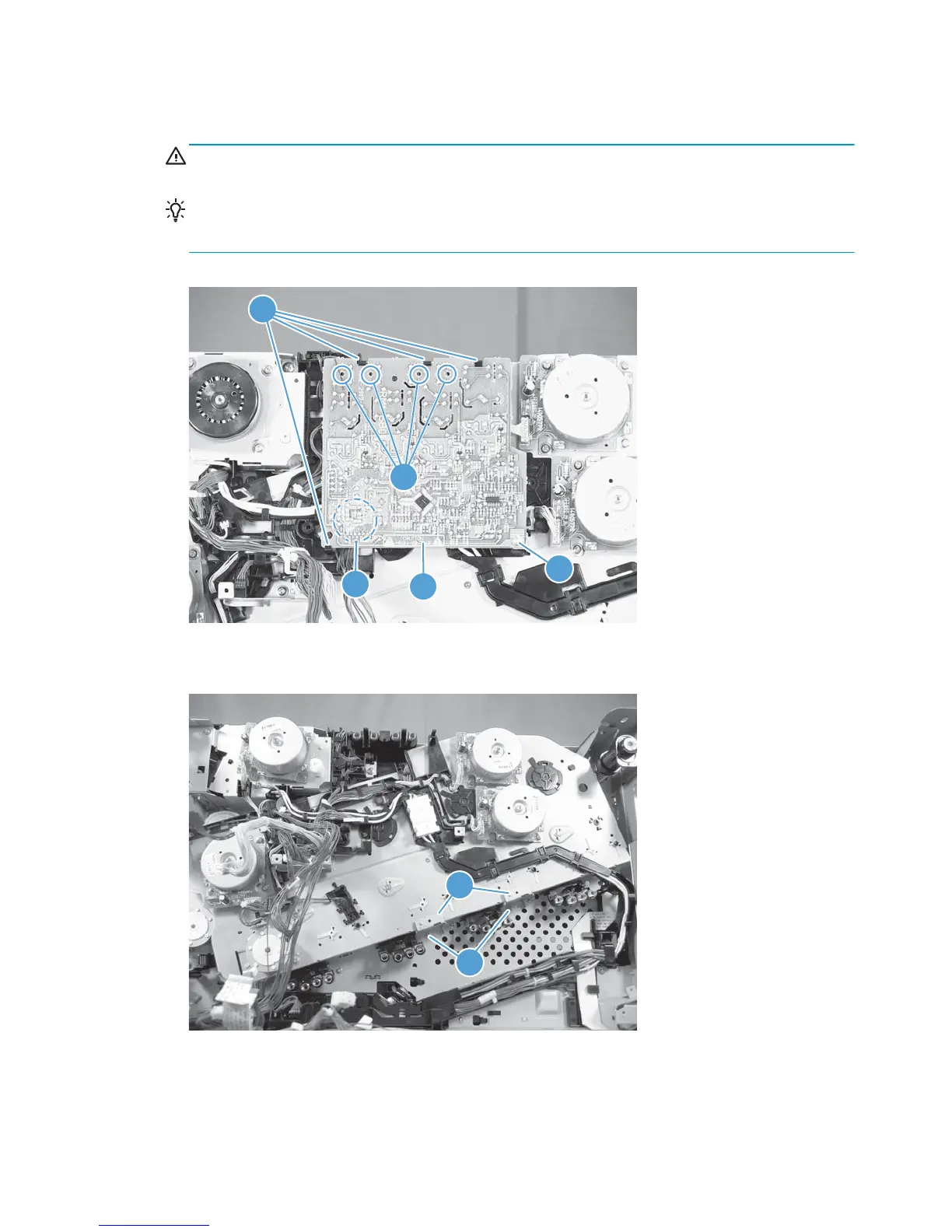

11. Remove one screw (callout 1), release four tabs (callout 2), and then separate the first transfer high-
voltage power supply (callout 3) from the product.
CAUTION: The PCA is still connected to the product. Disconnect one connector (callout 4) on the back
side of the PCA to remove it.
Reinstallation tip When you reinstall the power supply PCA, look through the holes on the PCA
(callout 5) and make sure that the contact springs are correctly positioned against the back side of the
PCA.
Figure 2-95 Remove the main drive assembly (11 of 17)
1
2
3
4
5
12. Remove two screws (callout 1), and then remove the sheet-metal support brackets (callout 2).
Figure 2-96 Remove the main drive assembly (12 of 17)
1
2
156 Chapter 2 Removal and replacement ENWW
