Driver PCA
Before proceeding, remove the following components:
●
Rear cover. See
Rear cover on page 111.
●
Right-rear cover. See
Right-rear cover on page 114.
Remove the driver PCA
CAUTION: ESD-sensitive part.
1. Disconnect all of the cables and FFCs from the DC controller (release the cables from the guides),
remove six screws (callout 1), and then remove the DC controller and the DC controller support.

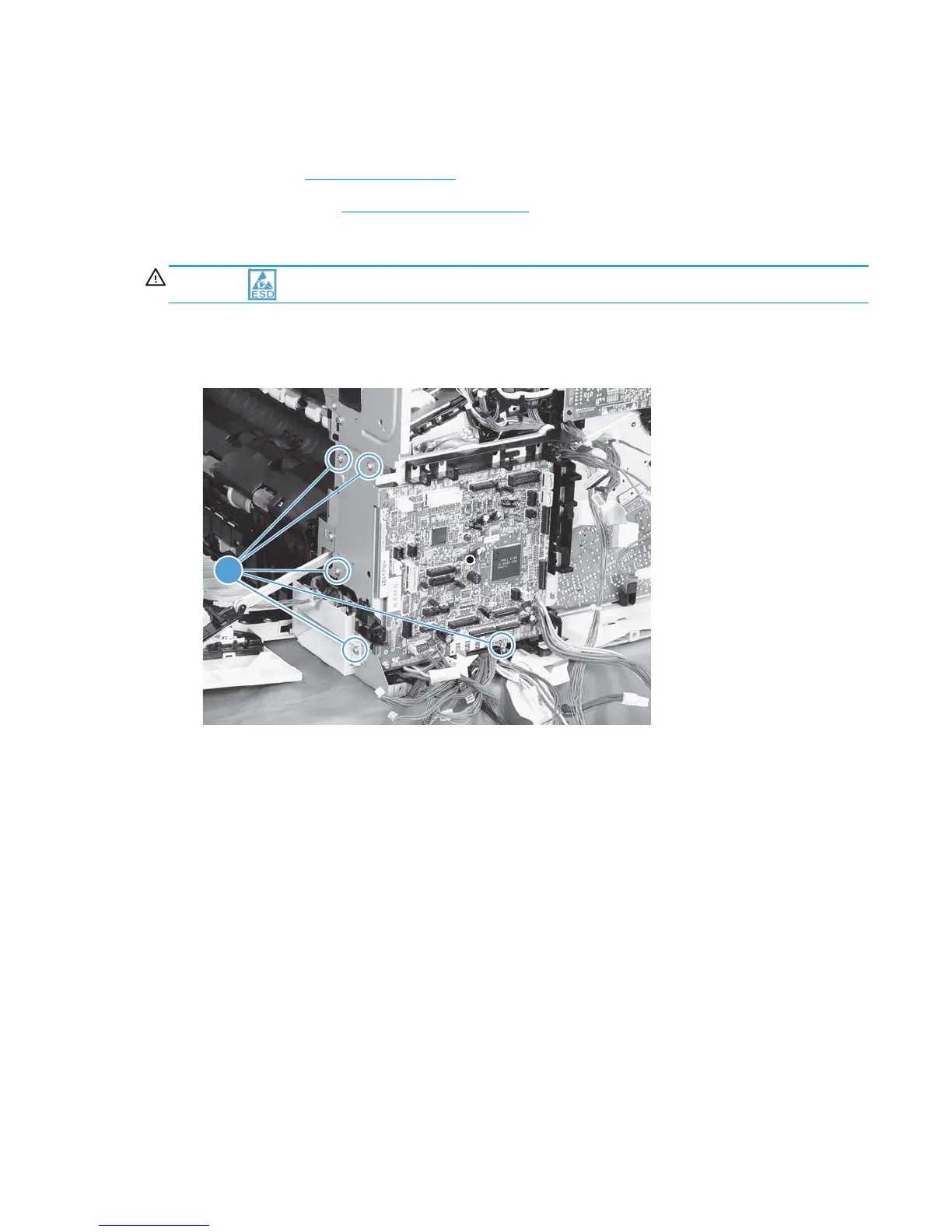

Figure 2-169 Remove the driver PCA (1 of 2)
