Power switch PCA
Before proceeding, remove the following components:
●
Right-front cover and control-panel assembly. See
Right-front cover and control-panel assembly
on page 108.
Remove the power switch PCA
CAUTION: ESD-sensitive part.
1. Open the front door and the right door.
2. Disconnect one connector (callout 1), release two tabs (callout 2), and then remove the PCA (callout 3).

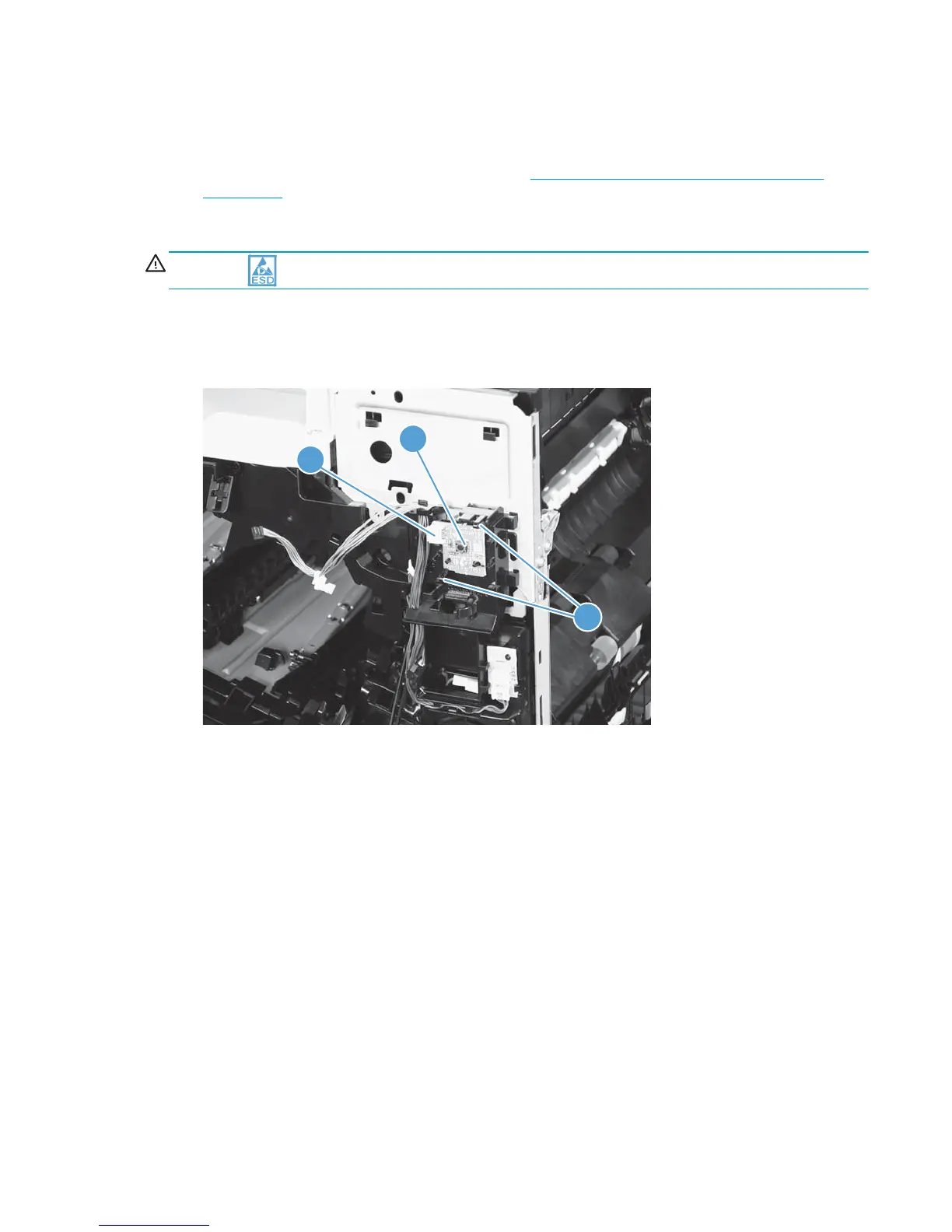

Figure 2-171 Remove the power switch PCA
1
3
2
ENWW Removal and replacement procedures 209
