1 x 500 right-lower cover
1. Remove the cassette from the feeder, and then remove the right door (see 1 x 500 right door
on page 216).
2. Remove one screw (callout 1), and then slide the cover (callout 2) to the right to clear an alignment pin
at the left side of the cover.

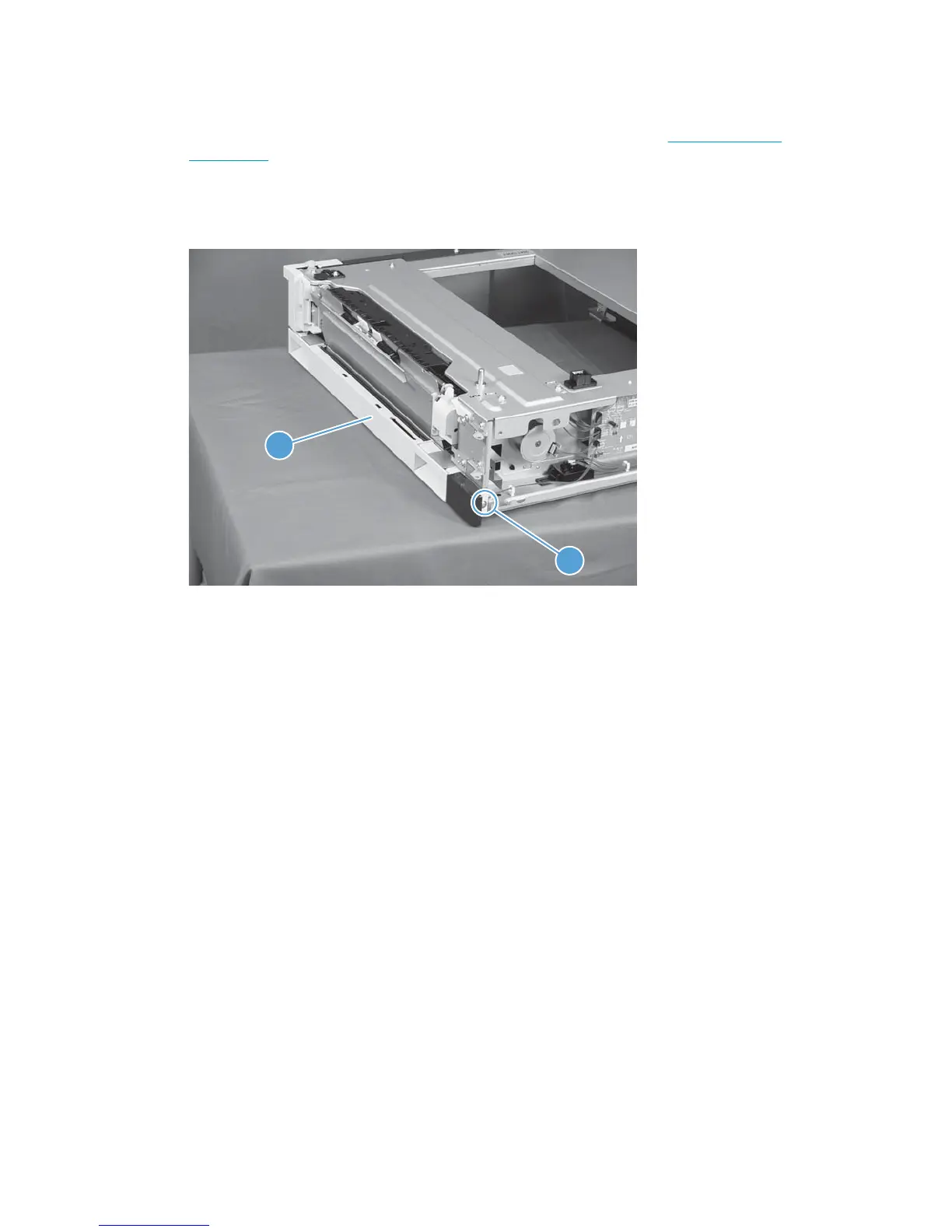

Figure 2-181 Remove the 1 x 500 right-lower cover
2
1
218 Chapter 2 Removal and replacement ENWW
