HP M750 series

1 x 500 pickup assembly
Before proceeding, remove the following components:
●
Rear cover. See
1 x 500 rear cover on page 211.
●
Right-front cover. See
1 x 500 right-front cover on page 214.
●
Right door. See
1 x 500 right door on page 216.
●
Right-lower cover. See
1 x 500 right-lower cover on page 218.
1. Disconnect three connectors (callout 1), and then remove one screw (callout 2).

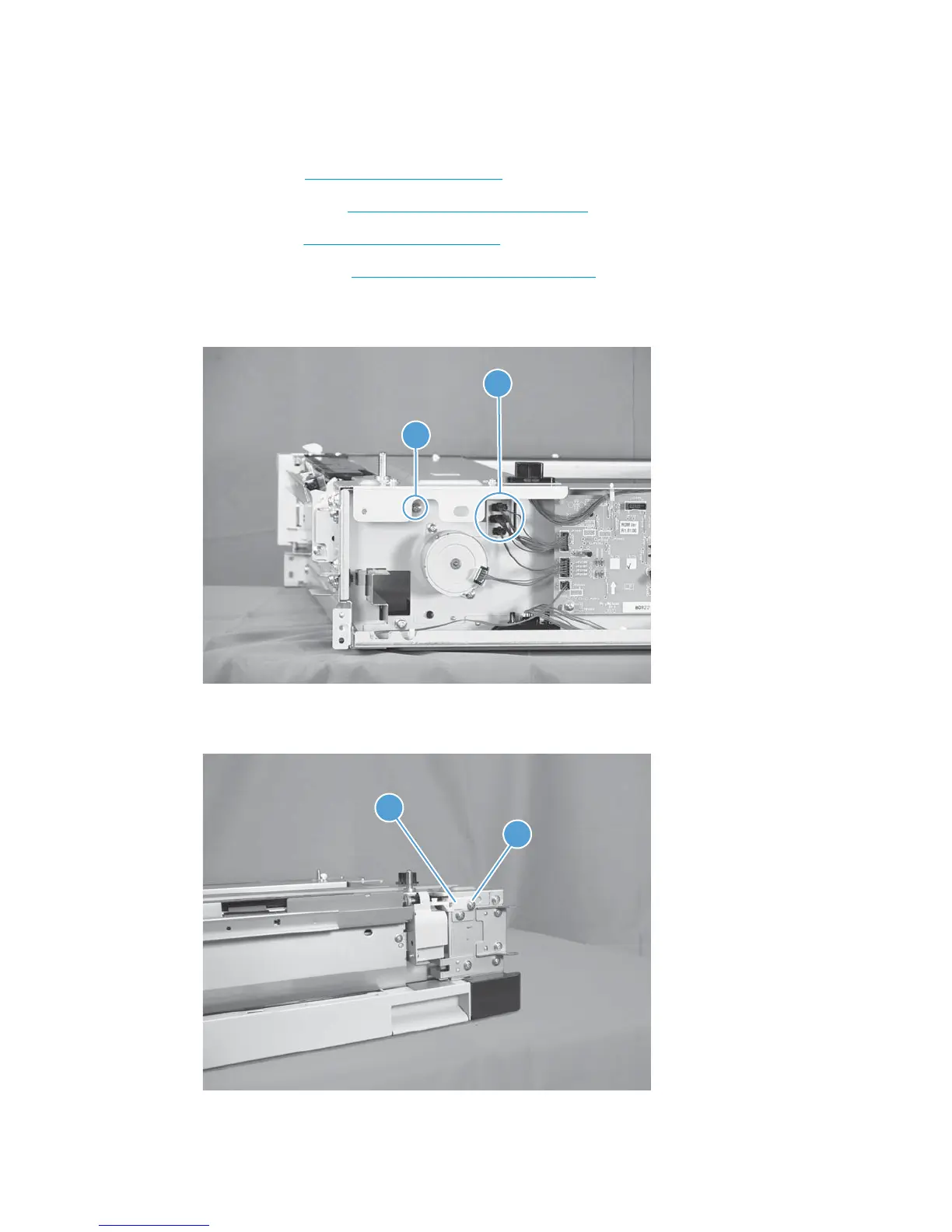

Figure 2-182 Remove the 1 x 500 pickup assembly (1 of 4)
1
2
2. Remove one screw (callout 1), and then remove the stopper of the right-door link (callout 2).
Figure 2-183 Remove the 1 x 500 pickup assembly (2 of 4)
1
2
ENWW Removal and replacement procedures 219
