3 x 500 paper deck controller PCAs
1. Remove the 3 x 500 rear cover (see 3 x 500 rear cover on page 225).
2. Disconnect all of the connectors for the desired PCA.
●
The top PCA has seven connectors.
●
The middle PCA has six connectors.
●
The bottom PCA has five connectors.
3. Remove two screws (callout 1), release two tabs (callout 2), and then remove the PCA. Repeat this
procedure for the remaining PCAs.
NOTE: Some connectors (callout 3) on the PCAs are not used.

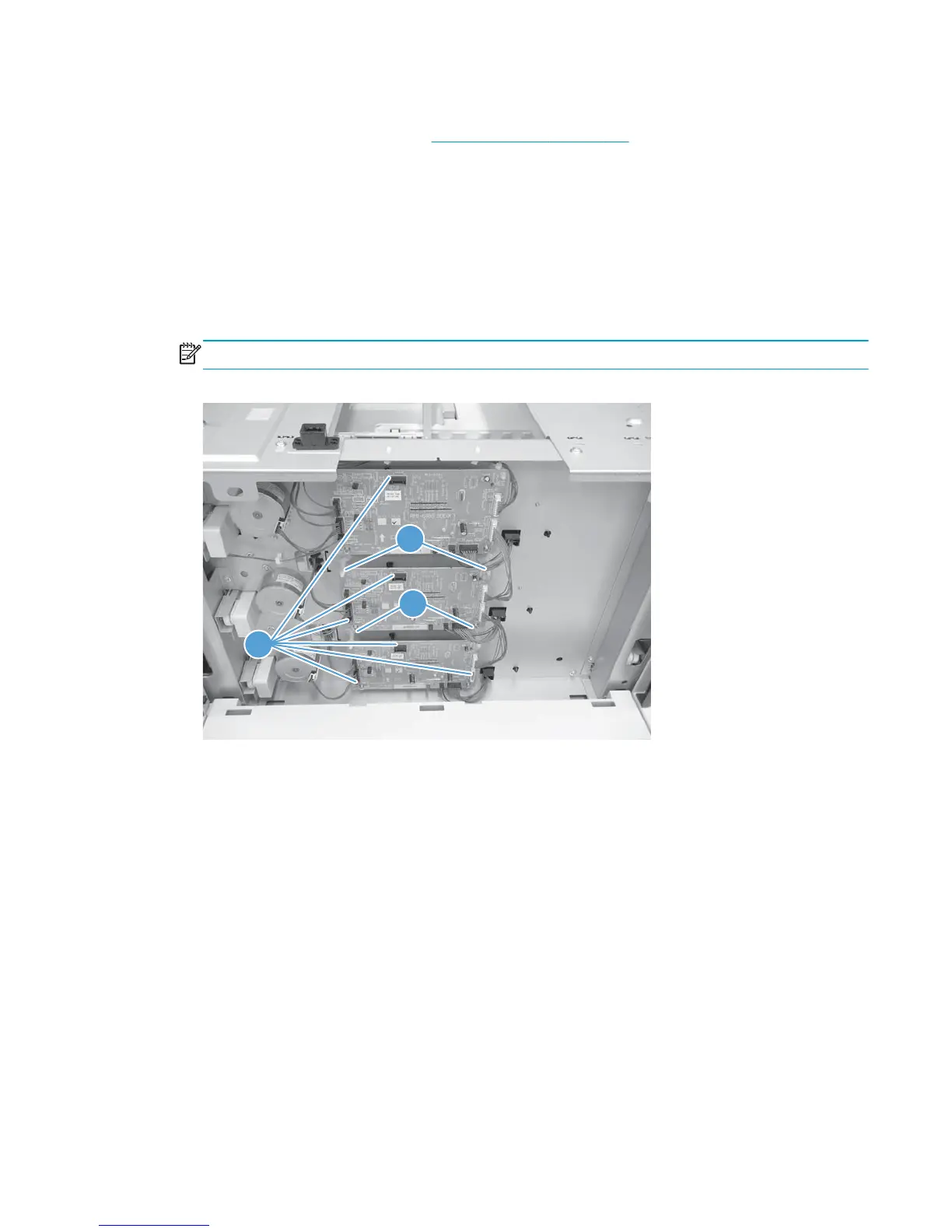

Figure 2-192 Remove the 3 x 500 paper deck controller PCA
1
2
3
ENWW Removal and replacement procedures 227
